The REF01 is industry-standard precision voltage references. The stable 10V output of the REF01 can be adjusted over a ±6% range with minimal effect on temperature stability. The 10V REF01 has a single-supply operation over an input voltage range of 13V to 33V. The devices offer a low-current drain of 1mA.
Features:-
♦ Pretrimmed to +5V, +10V
♦ Excellent Temperature Stability: 3ppm/°C (typ)
♦ Low Noise: 10µVP-P
♦ Short-Circuit Protected
♦ Linear Temperature Transducer Output
Specification:-
| Parameter | Specification |
| Input Voltage | 40V, 30V |
| Continuous Power Dissipation: Plastic Dip | 500mW |
| Output Short-Circuit Duration | Indefinite |
| Storage Temperature Range | -65°C to +150°C |
| Operating Temperature Range | 0°C to +70°C, -40°C to +85°C |
| Lead Temperature | 300°C |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 194.7 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

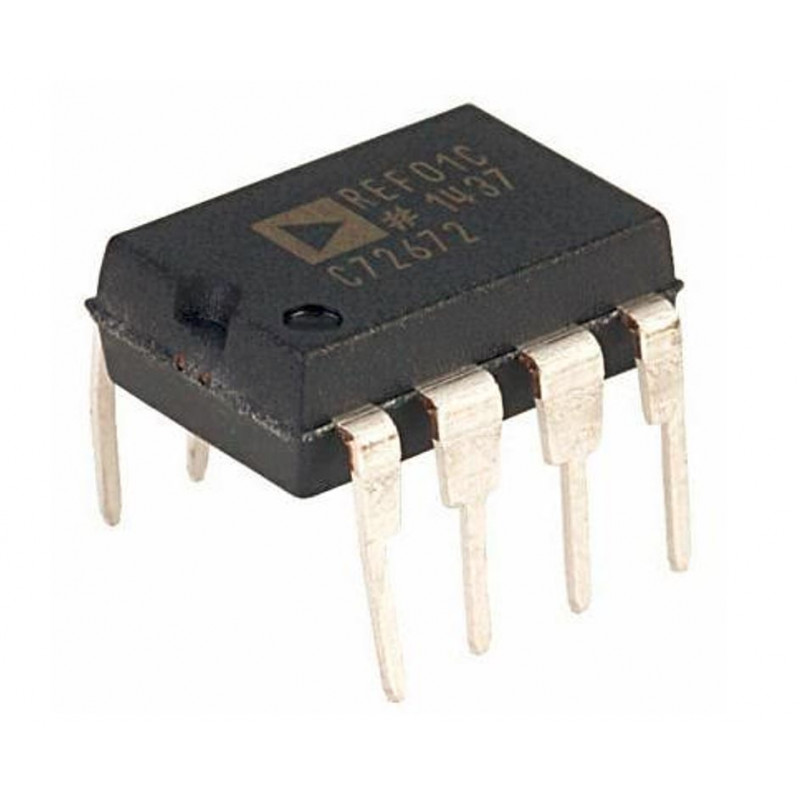

REF01 IC - 10V Precision Voltage Reference IC
- Product Code: EC-1873
- Availability: 783
-
Rs.135.00
- (Excluding 18% GST)
