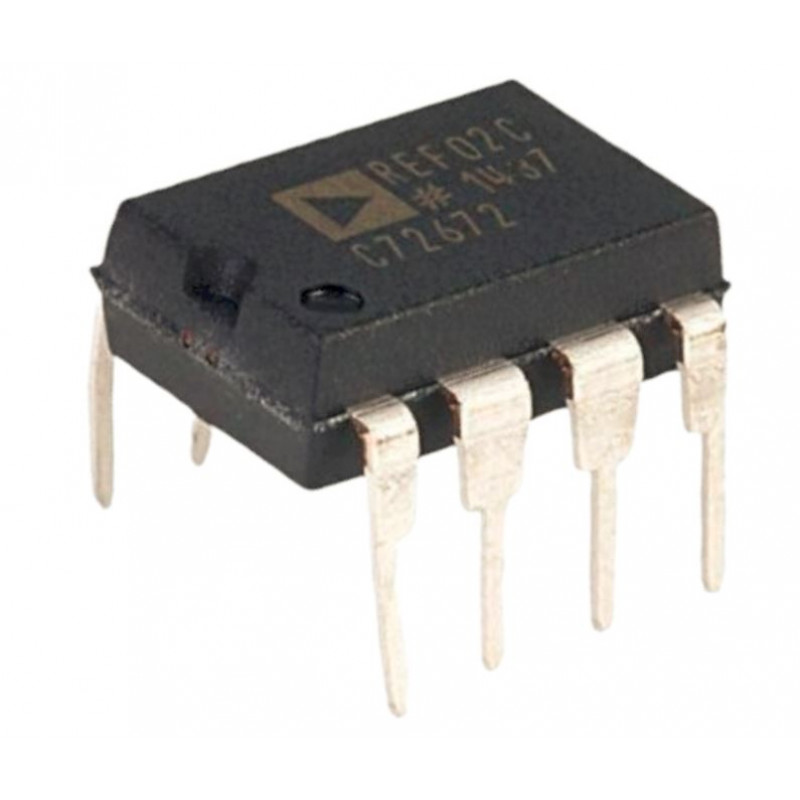

  • REF02 IC - 5V Precision Voltage Reference IC

The REF02 are industry-standard precision voltage references. The 5V output REF02 can also be adjusted over a ±6% range. The 5V REF02 has a single-supply operation over an input voltage range of 7V to 33V. Both devices offer a low-current drain of 1mA. The REF02 also provides a TEMP pin whose output voltage varies linearly with temperature, making this device suitable for a wide variety of temperature-sensing and control applications. For new designs, refer to the MAX6035 or MAX6143 data sheets.


Features:-

♦  Pretrimmed to +5V, +10V

♦ Excellent Temperature Stability: 3ppm/°C (typ)

♦ Low Noise: 10µVP-P

♦ Short-Circuit Protected

♦ Linear Temperature Transducer Output


Specification:-

Parameter Specification
Input Voltage 40V, 30V
Continuous Power Dissipation: Plastic Dip 500mW
Output Short-Circuit Duration  Indefinite
Storage Temperature Range  -65°C to +150°C
Operating Temperature Range 0°C to +70°C, -40°C to +85°C
Lead Temperature 300°C


Related Document:-

REF02 IC Data Sheet


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 194.7 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

REF02 IC - 5V Precision Voltage Reference IC

  • Product Code: EC-1874
  • Availability: 809
  • Rs.130.00
  • (Excluding 18% GST)
