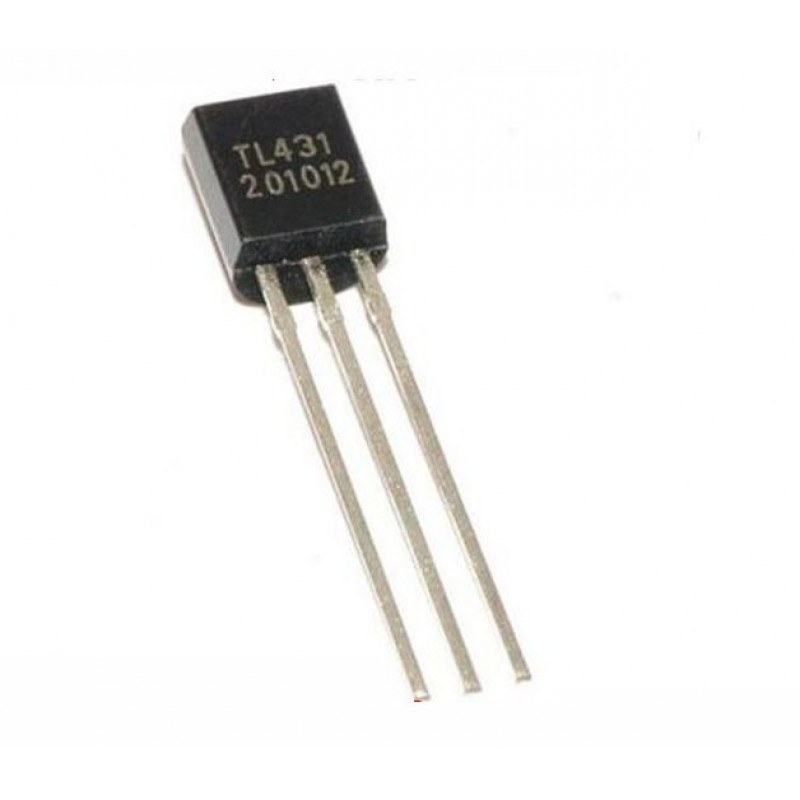

  • TL431 Adjustable Precision Shunt Regulator TO-92 Package

TL431 is three-terminal adjustable regulator series with a guaranteed thermal stability over applicable temperature ranges. The output voltage may be set to any value between VREF (approximately 2.5 volts) and 36 volts with two external resistors. These devices have a typical dynamic output impedance of 0.2Ω. Active output circuitry provides a very sharp turn-on characteristic, making these devices excel lent replacement for zener diodes in many applications.


Features:-

  • Programmable Output Voltage to 36 Volts
  • Low Dynamic Output Impedance 0.2Ω Typical
  • Sink Current Capability of 1.0 to 100mA
  • Equivalent Full-Range Temperature Coefficient of 50ppm/°C Typical
  • Temperature Compensated For Operation Over Full Rated Operating Temperature Range
  • Low Output Noise Voltage
  • Fast Turn-on Response

Related Documents:-

 TL431 Regulator Datasheet

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 8.26 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

TL431 Adjustable Precision Shunt Regulator TO-92 Package

  • Product Code: EC-1585
  • Availability: 3447
  • Rs.7.00
  • (Excluding 18% GST)
