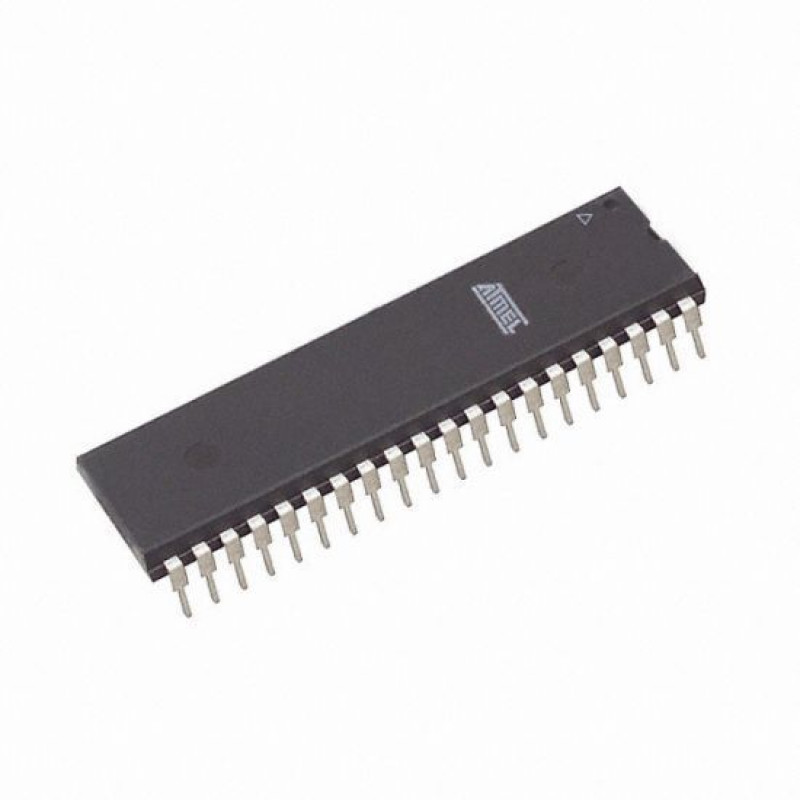

  • AT89S8252 Microcontroller - 24MHz - 8 Bit - 40 Pin

The AT89S8252 is a low-power, high-performance CMOS 8-bit microcomputer with 8K bytes of downloadable Flash programmable and erasable read only memory and 2K bytes of EEPROM. The device is manufactured using Atmel’s high-density nonvolatile memory technology and is compatible with the industry-standard 80C51 instruction set and pinout. The on-chip downloadable Flash allows the program memory to be reprogrammed in-system through an SPI serial interface or by a conventional nonvolatile memory programmer. By combining a versatile 8-bit CPU with downloadable Flash on a monolithic chip, the Atmel AT89S8252 is a powerful microcomputer which provides a highly-flexible and cost-effective solution to many embedded control applications.

  • Compatible with MCS-51™ Products
  • 8K Bytes of In-System Reprogrammable Downloadable Flash Memory
  • SPI Serial Interface for Program Downloading
  • Endurance: 1,000 Write/Erase Cycles
  • 2K Bytes EEPROM
  • Endurance: 100,000 Write/Erase Cycles
  • 4V to 6V Operating Range
  • Fully Static Operation: 0 Hz to 24 MHz
  • Three-level Program Memory Lock
  • 256 x 8-bit Internal RAM
  • 32 Programmable I/O Lines
  • Three 16-bit Timer/Counters
  • Nine Interrupt Sources
  • Programmable UART Serial Channel
  • SPI Serial Interface
  • Low-power Idle and Power-down Modes
  • Interrupt Recovery From Power-down
  • Programmable Watchdog Timer
  • Dual Data Pointer
  • Power-off Flag

Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

AT89S8252 Microcontroller - 24MHz - 8 Bit - 40 Pin

  • Product Code: EC-2140
  • Availability: 479
  • Rs.485.00
  • (Excluding 18% GST)
