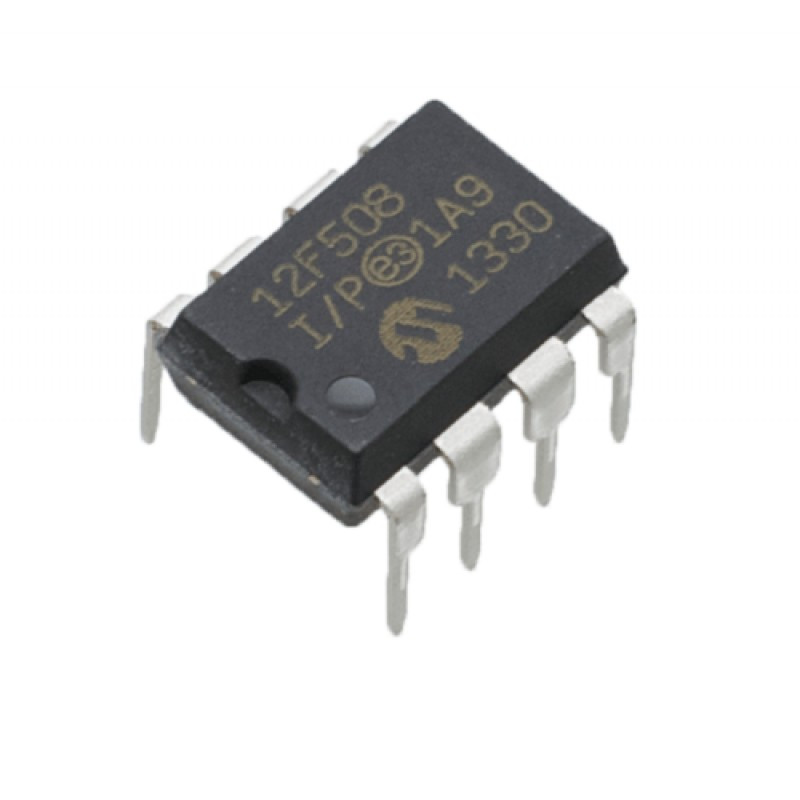

• PIC12F508 Microcontroller

The PIC12F508 from Microchip Technology is low-cost, high-performance, 8-bit, fully-static, Flash-based CMOS microcontroller. They employ a RISC architecture with only 33 single-word/single-cycle instructions. All instructions are single cycle (200 μs) except for program branches, which take two cycles. The PIC12F508 device deliver performance an order of magnitude higher than their competitors in the same price category. The 12-bit wide instructions are highly symmetrical, resulting in a typical 2:1 code compression over other 8-bit microcontrollers in its class. The easy to use and easy to remember instruction set reduces development time significantly.

The PIC12F508 microcontroller is equipped with special features that reduce system cost and power requirements. The Power-on Reset (POR) and Device Reset Timer (DRT) eliminate the need for external Reset circuitry. There are four oscillator configurations to choose from, including INTRC Internal Oscillator mode and the power-saving LP (Low-Power) Oscillator mode. Power-Saving Sleep mode, Watchdog Timer and code protection features improve system cost, power and reliability.


Features of PIC12F508 Microcontroller:-

  •  Precision 4 MHz internal oscillator
  •  Baseline Core with 33 Instructions, 2 Stack Levels
  •  All single-cycle Instructions except for program branches which are two cycles
  •  12-bit wide instructions
  •  8-bit wide data path
  •  25 mA source/sink current I/O
  •  Low power (100nA) sleep current
  •  One 8-bit timer (TMR0)
  •  Watchdog timer (WDT)
  •  In Circuit Serial Programming™ (ICSP™) capability
  •  In-Circuit debugging support
  •  Programmable code protection
  •  Program Memory Type: Flash
  •  Program Memory (KB): 0.75
  •  CPU Speed (MIPS): 1
  •  RAM Bytes: 25
  •  Timers: 1 x 8-bit
  •  Temperature Range (C): -40 to 125
  •  Operating Voltage Range (V): 2 to 5.5
  •  Pin Count: 8
