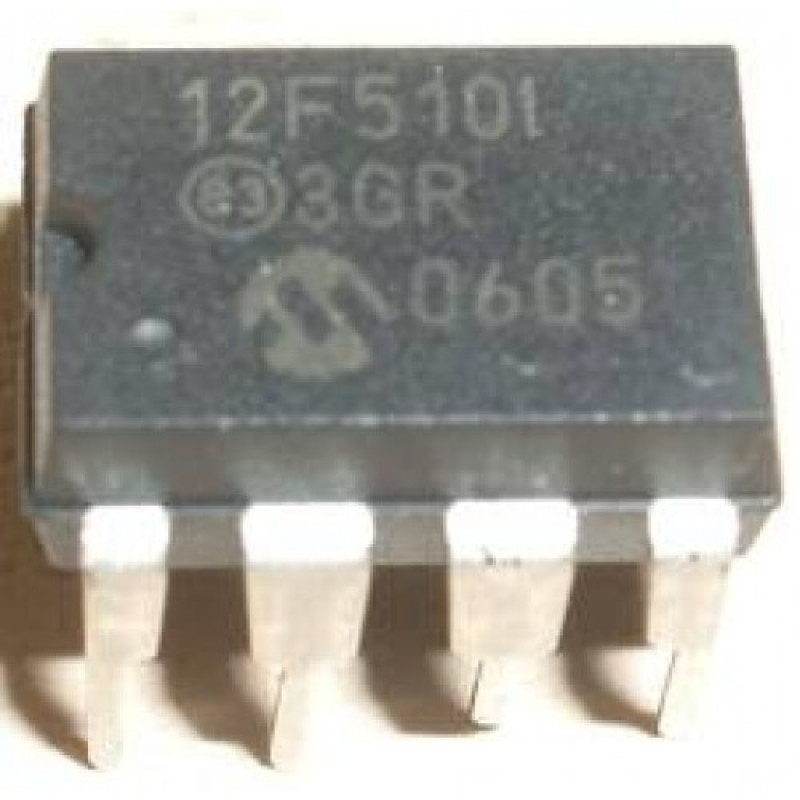

• PIC12F510 Microcontroller

The PIC12F510 device is low-cost, high-performance, 8-bit, fullystatic, Flash-based CMOS micro controllers. They employ a RISC architecture with only 33 single-word/ single-cycle instructions. All instructions are single cycle except for program branches, which take two cycles. The PIC12F510 devices deliver performance in an order of a magnitude higher than their competitors in the same price category. The 12-bit wide instructions are highly symmetrical, resulting in a typical 2:1 code compression over other 8-bit micro controllers in its class. The easy-to-use and easy to-remember instruction set reduces development time significantly. The PIC12F510 product is equipped with special features that reduce system cost and power requirements. The Power-on Reset (POR) and Device Reset Timer (DRT) eliminate the need for external Reset circuitry. There are four oscillator configurations to choose from (six on the PIC16F506), including INTOSC Internal Oscillator mode and the Power-Saving LP (Low-power) Oscillator mode. Power-Saving Sleep mode, Watchdog Timer and code protection features improve system cost, power and reliability. The PIC12F510 device allow the customer to take full advantage of Microchip’s price leadership in Flash programmable micro controllers, while benefiting from the Flash programmable flexibility. The PIC12F510 products are supported by a full-featured macro assembler, a software simulator, an in-circuit emulator, a ‘C’ compiler, a low-cost development programmer and a full featured programmer.

Features:-

  • High-Performance RISC CPU:
    • Only 33 Single-Word Instructions to Learn
    • All Single-Cycle Instructions except for Program Branches, which are Two-Cycle • 12-Bit Wide Instructions
    • Two-Level Deep Hardware Stack
    • Direct, Indirect and Relative Addressing modes for Data and Instructions
    • 8-Bit Wide Data Path
    • 10 Special Function Hardware Registers (PIC12F510)
    • 13 Special Function Hardware Registers (PIC16F506)
    • Operating Speed:
      • DC – 8 MHz Crystal Oscillator (PIC12F510)
      • DC – 500 ns instruction cycle (PIC12F510)
      • DC – 20 MHz Crystal Oscillator (PIC16F506)
      • DC – 200 ns instruction cycle (PIC16F506)
  • Low-Power Features/CMOS Technology:
    • Operating Current: - < 175 μA @ 2V, 4 MHz, typical
    • Standby Current: - 100 nA @ 2V, typical
    • Low-Power, High-Speed Flash Technology: - 100,000 cycle Flash endurance - > 40-year retention
    • Fully Static Design
    • Wide Operating Voltage Range: 2.0V to 5.5V
    • Wide Temperature Range: - Industrial: -40°C to +85°C - Extended: -40°C to +125°C
  • Peripheral Features (PIC12F510):
    • 6 I/O Pins:
      • 5 I/O pins with individual direction control
      • 1 input only pin
    • 1 Analog Comparator with Absolute Reference

Specification:-

Parameter Value
Maximum Frequency of Operation (MHz) 8
Flash Program Memory (words) 1024
Data Memory (bytes) 38
Timer Module(s) TMRO
Wake-up from Sleep on Pin Change Yes
I/O Pins 5
Input Pins 1
Internal Pull-ups Yes
In-Circuit Serial Programming Yes
Number of Instructions 33
Packages 8 Pin PDIP


Related Document:-

 PIC12F510 IC Data Sheet

Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

PIC12F510 Microcontroller

  • Product Code: EC-2144
  • Availability: 578
  • Rs.76.00
  • (Excluding 18% GST)
