• PIC12F675 Microcontroller

The PIC12F675 has a 13-bit program counter capable of addressing an 8K x 14 program memory space. The data memory is partitioned into two banks, which contain the General Purpose Registers and the Special Function Registers. The register file is organized as 64 x 8 in the PIC12F675 device. Each register is accessed, either directly or indirectly, through the File Select Register FSR. There are as many as six general purpose I/O pins available. Depending on which peripherals are enabled, some or all of the pins may not be available as general purpose I/O. In general, when a peripheral is enabled, the associated pin may not be used as a general purpose I/O pin.

Features:-

  • High-Performance RISC CPU:
    • Only 35 Instructions to Learn
      • All single-cycle instructions except branches
    • Operating Speed:
      • DC – 20 MHz oscillator/clock input
      • DC – 200 ns instruction cycle
    • 8-Level Deep Hardware Stack
    • Interrupt Capability
    • Direct, Indirect, and Relative Addressing modes
  • Peripheral Features:
    • 6 I/O Pins with Individual Direction Control
    • High Current Sink/Source for Direct LED Drive
    • Analog Comparator module with:
      • One analog comparator
      • Programmable on-chip comparator voltage reference (CVREF) module
      • Programmable input multiplexing from device inputs
      • Comparator output is externally accessible
    • Analog-to-Digital Converter module (PIC12F675):
      • 10-bit resolution
      • Programmable 4-channel input
      • Voltage reference input
    • Timer0: 8-Bit Timer/Counter with 8-Bit Programmable Prescaler
    • Enhanced Timer1:
      • 16-bit timer/counter with prescaler
      • External Gate Input mode
      • Option to use OSC1 and OSC2 in LP mode as Timer1 oscillator, if INTOSC mode selected
    • In-Circuit Serial ProgrammingTM (ICSPTM) via two pins

Specification:-

Parameter Value
Program Memory - Flash (Words) 1024
Data Memory -  SRAM (bytes) 64
Data Memory - EEPROM (bytes) 128
I/O 6
10-bit A/D (ch) 4
Comparators 1
Timers Flash 8/16-bit 1/1


Related Document:-


Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

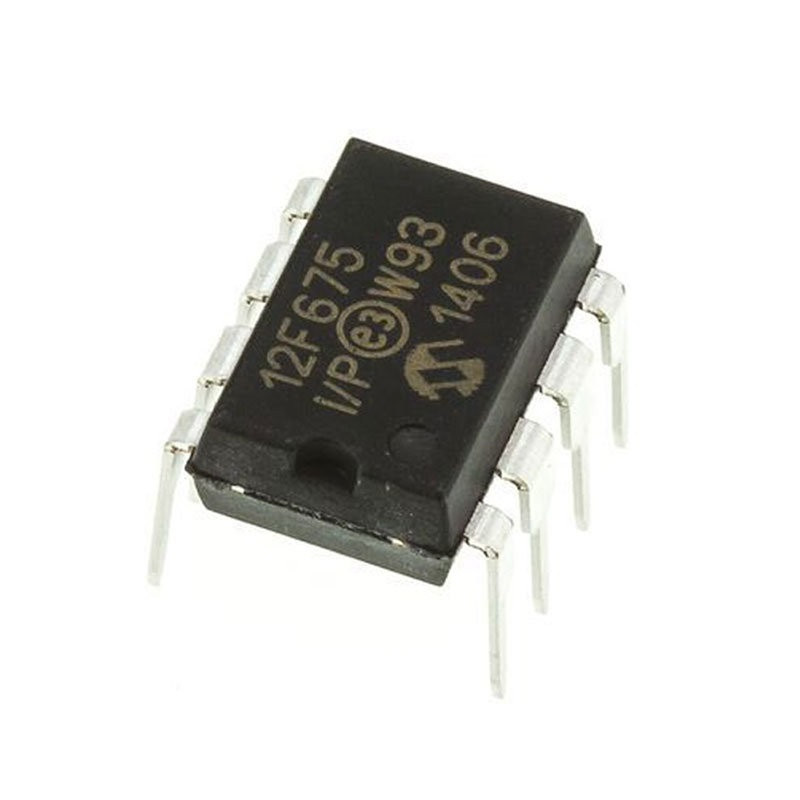

PIC12F675 Microcontroller

  • Product Code: EC-0099
  • Availability: 514
  • Rs.63.00
  • (Excluding 18% GST)
