The PIC16C54 is powerful (200 nanosecond instruction execution) yet easy-to-program (only 33 single-word instructions) FLASH-based 8-bit micro controller packs Microchip’s powerful PICmicro® architecture into an 18-pin package. Easily adapted for automotive, industrial, appliances and consumer entry-level product applications.
Features:-
• 18-pin packaging
• Baseline Core with 33 Instructions, 2 Stack Levels
• All single-cycle Instructions except for program branches which are two cycles
• 12-bit wide instructions
• 8-bit wide data path
• 25 mA source/sink current I/O
• Low power (100nA) sleep current
• One 8-bit timer (TMR0)
• Watchdog timer (WDT)
• In-Circuit Serial Programming™
• In-Circuit debugging support
• Programmable code protection
Specification:-
| Parameter | Value |
| Program Memory Type | Flash |
| Program Memory Size (KB) | 0.75 |
| CPU Speed (MIPS/DMIPS) | 5 |
| SRAM (B) | 25 |
| Timers | 1 x 8-bit |
| Temperature Range (°C) | -40 to 125 |
| Operating Voltage Range (V) | 2 to 5.5 |
| Pin Count | 18 |
Related Document:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 93.22 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

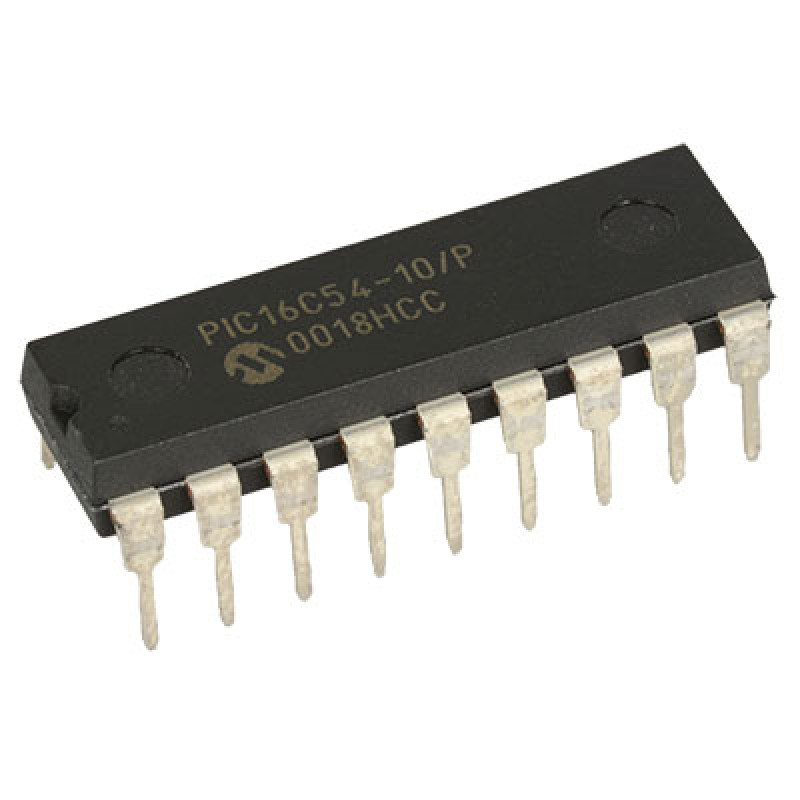

PIC16C54 Microcontroller
- Product Code: EC-2146
- Availability: 268
-
Rs.149.00
- (Excluding 18% GST)
