The PIC16C63A devices are low cost, high performance, CMOS, fully-static, 8-bit microcontrollers in the PIC16CXX mid-range family. All PIC® microcontrollers employ an advanced RISC architecture. The PIC16CXX microcontroller family has enhanced core features, eight-level deep stack and multiple internal and external interrupt sources. The separate instruction and data buses of the Harvard architecture allow a 14-bit wide instruction word with the separate 8-bit wide data. The two stage instruction pipeline allows all instructions to execute in a single cycle, except for program branches, which require two cycles. A total of 35 instructions (reduced instruction set) are available. Additionally, a large register set gives some of the architectural innovations used to achieve a very high performance. The PIC16C63 devices have 22 I/O pins. Each device has 192 bytes of RAM. In addition, several peripheral features are available, including: three timer/ counters, two Capture/Compare/PWM modules, and two serial ports. The Synchronous Serial Port (SSP) can be configured as either a 3-wire Serial Peripheral Interface (SPI) or the two-wire Inter-Integrated Circuit (I2C) bus.


 High performance RISC CPU

Only 35 single word instructions to learn

All single cycle instructions except for program branches which are two cycle

Interrupt capability

Eight-level deep hardware stack

Direct, indirect and relative addressing modes

Power-on Reset (POR)

Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)

Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation

Programmable code protection

Power-saving SLEEP mode

Selectable oscillator options

Low power, high speed CMOS EPROM technology


Parameter Value
Program Memory Type OTP
Program Memory Size (KB) 7
SRAM (B) 192
Timers 1 x 8-bit, 1x16 bit
Temperature Range (°C) -40 to 85
Operating Voltage Range (V) 2.5 to 6
Pin Count
Digital Communication Peripherals 1-UART,
Capture/Compare/PWM Peripherals 2 CCP,

Related Document:-

 PIC16C63 IC Data Sheet

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 147.5 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

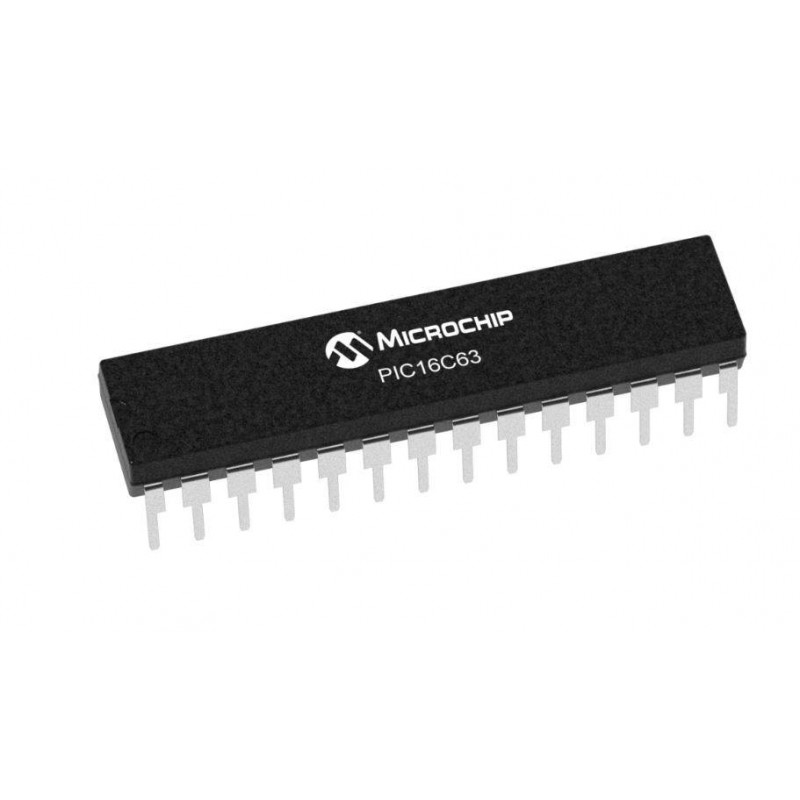

PIC16C63 Microcontroller
