• PIC16F690 Microcontroller

The PIC16F690 is a 20-Pin Flash-Based, 8-Bit CMOS Microcontrollers. The following are the features:-

17 1/0 Pins and I Input-only Pin:

    - High current source/sink for direct LED drive

    -  Interrupt-on-Change pin

    -  Individually programmable weak pull-ups

    - Ultra Low-power Wake-up (LJLPWU)

• Analog Comparator Module With:

   - TWO analog comparators

   - Programmable on-chip voltage reference (CVREF) module (% of VDD)

    - Comparator inputs and outputs externally accessible

    - SR Latch mode

   - Timer I Gate Sync Latch

    - Fixed O.6VVREF

 • AID Converter:  ID-bit resolution and 12 channels

• Timer 8-Bit Timer/Counter With 8-Bit rammable Prescaler

Specification:-

Parameter Value
Program Memory Type Flash
Program Memory Size (KB) 7
CPU Speed (MIPS/DMIPS) 5
SRAM (B) 256
Temperature Range (°C) -40 to 125
Operating Voltage Range (V) 2 to 5.5
Pin Count 20
Timers 2 x 8-bit, 1 x 16-bit
Data EEPROM/HEF (bytes) 256
Number of Comparators 2
Digital Communication Peripherals 1-UART, 1-SPI, 1-I2C1-SSP(SPI/I2C)
ADC Input 12 ch, 10-bit
Capture/Compare/PWM Peripherals 1 Input Capture, 1 ECCP


Related Document:-

 PIC16F690 IC Data Sheet

Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

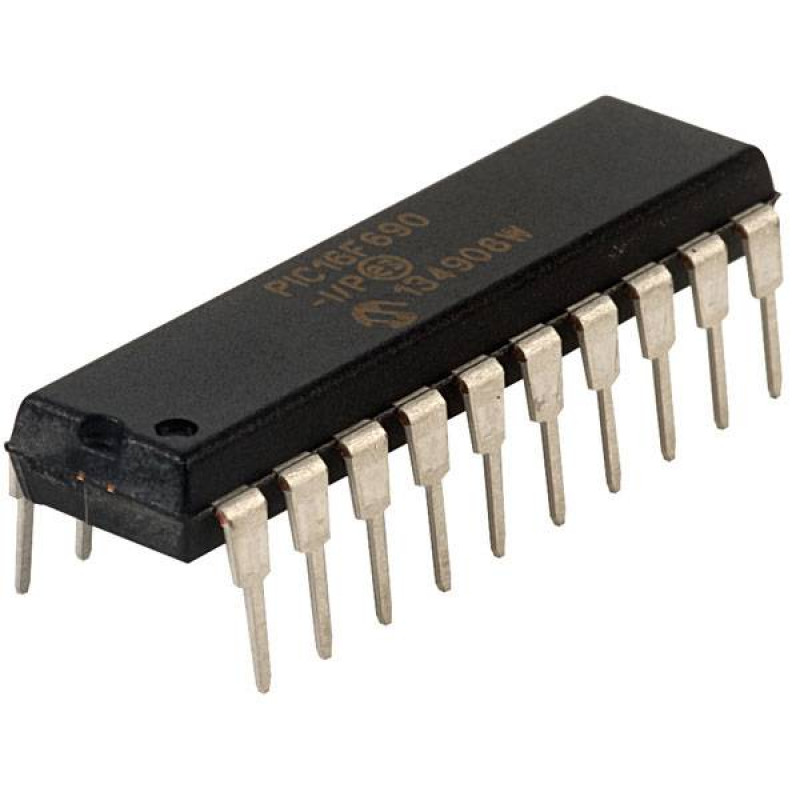

PIC16F690 Microcontroller

  • Product Code: EC-0431
  • Availability: 429
  • Rs.118.00
  • (Excluding 18% GST)
