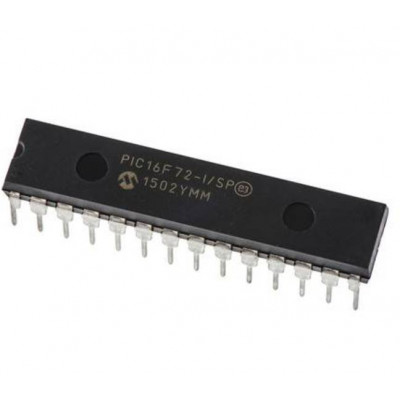

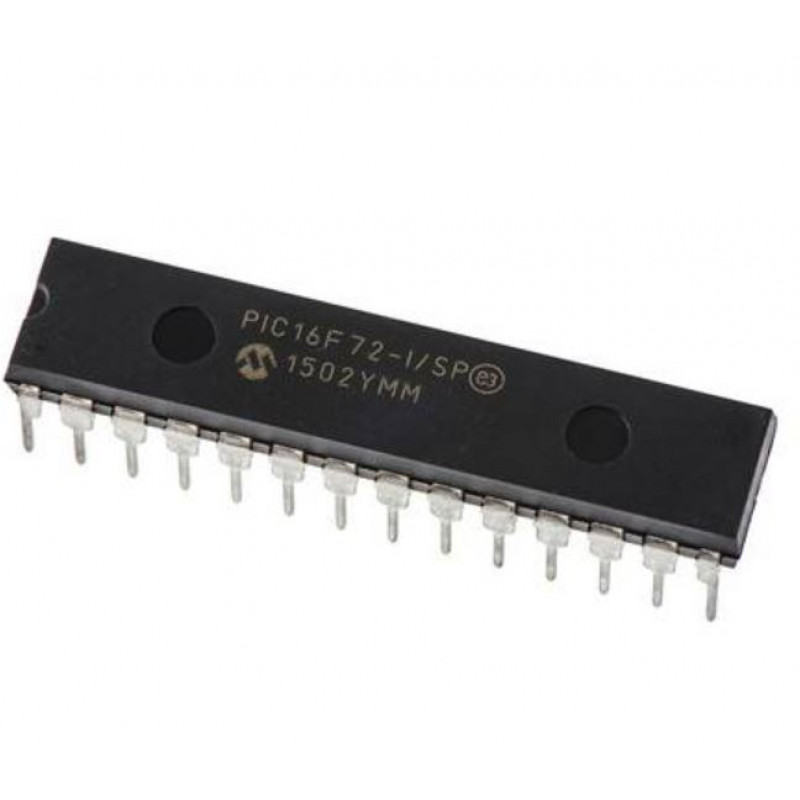

• PIC16F72 Microcontroller

The PIC16F72 is a 28-Pin, 8-Bit CMOS FLASH MCU with A/D Converter. The following are the features:-

• High Sink/Source Current: 25 mA

• Timer0: 8-bit timer/counter with 8-bit prescaler

• Timer1: 16-bit timer/counter with prescaler, can be incremented during SLEEP via external crystal/clock

• Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler

• Capture, Compare, PWM (CCP) module

    - Capture is 16-bit, max. resolution is 12.5 ns

    - Compare is 16-bit, max. resolution is 200 ns

    - PWM max. resolution is 10-bit

• 8-bit, 5-channel analog-to-digital converter

• Synchronous Serial Port (SSP) with SPI™ (Master/Slave) and I2C™ (Slave)

• Brown-out detection circuitry for Brown-out Reset (BOR)

Specification:-

Parameter Value
Program Memory Type Flash
Program Memory Size (KB) 3.5
CPU Speed (MIPS/DMIPS) 5
SRAM (B) 128
Temperature Range (°C) -40 to 125
Operating Voltage Range (V) 2 to 5.5
Pin Count 28
Timers 2 x 8-bit, 1 x 16-bit
ADC Input 5 ch, 8-bit
Capture/Compare/PWM Peripherals 1 Input Capture, 1 CCP
Digital Communication Peripherals 1-SSP(SPI/I2C)
