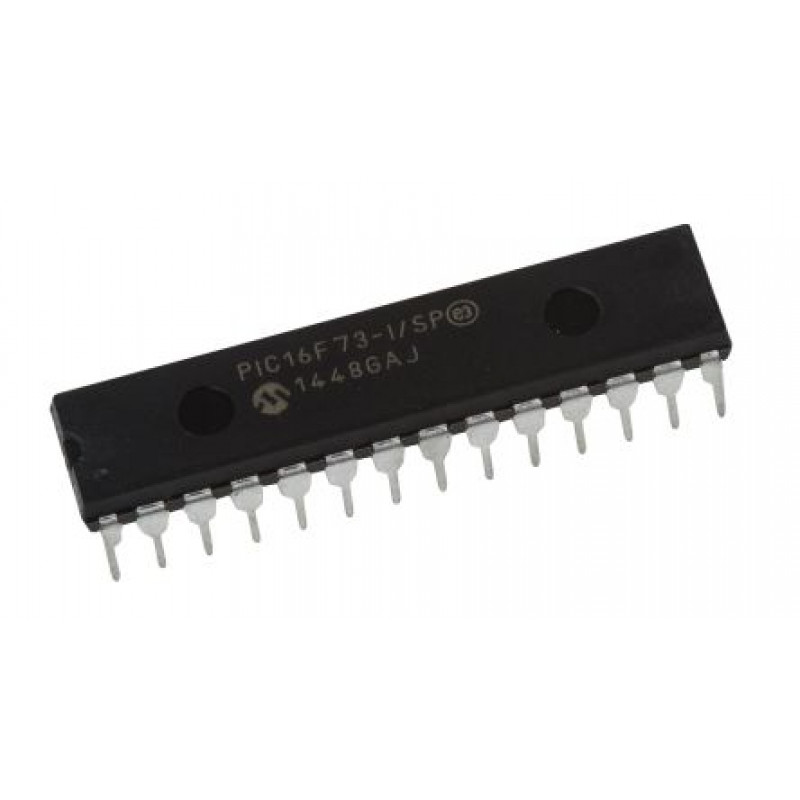

• PIC16F73 Microcontroller

The PIC16F73 is a 28/40-Pin 8-Bit CMOS FLASH Microcontrollers . The following are the features:-

• Timer0: 8-bit timer/counter with 8-bit prescaler

• Timer1: 16-bit timer/counter with prescaler, can be incremented during SLEEP via external crystal/clock

• Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler

• Capture, Compare, PWM (CCP) module

    - Capture is 16-bit, max. resolution is 12.5 ns

    - Compare is 16-bit, max. resolution is 200 ns

    - PWM max. resolution is 10-bit

• 8-bit, 5-channel analog-to-digital converter

• Synchronous Serial Port (SSP) with SPI™ (Master/Slave) and I2C™ (Slave)

• Brown-out detection circuitry for Brown-out Reset (BOR)

Specification:-

Parameter Value
Program Memory Type Flash
Program Memory Size (KB) 7
CPU Speed (MIPS/DMIPS) 5
SRAM (B) 192
Temperature Range (°C) -40 to 125
Operating Voltage Range (V) 2 to 5.5
Pin Count 28
Timers 2 x 8-bit, 1 x 16-bit
ADC Input 5 ch, 8-bit
Capture/Compare/PWM Peripherals 2 Input Capture, 2 CCP
Digital Communication Peripherals 1-UART, 1-SPI, 1-I2C1-SSP(SPI/I2C)


Related Document:-

 PIC16F73 IC Data Sheet

Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

PIC16F73 Microcontroller

  • Product Code: EC-2156
  • Availability: 366
  • Rs.86.00
  • (Excluding 18% GST)
