The PIC16F818 is a 18/20-Pin Enhanced Flash Microcontrollers with nano Watt Technology. The following are the features:-

• 16 I/O pins with individual direction control

• High sink/source current: 25 mA

• Timer0: 8-bit timer/counter with 8-bit prescaler

• Timer1: 16-bit timer/counter with prescaler, can be incremented during Sleep via external crystal/clock

• Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler

• Capture, Compare, PWM (CCP) module:

- Capture is 16-bit, max. resolution is 12.5 ns

- Compare is 16-bit, max. resolution is 200 ns

- PWM max. resolution is 10-bit

• 10-bit, 5-channel Analog-to-Digital converter

• Synchronous Serial Port (SSP) with SPI (Master/Slave) and I2C™ (Slave)

Specification:-

Parameter	Value
Program Memory Type	Flash
Program Memory Size (KB)	1.75
CPU Speed (MIPS/DMIPS)	5
SRAM (B)	128
Temperature Range (°C)	-40 to 125
Operating Voltage Range (V)	2 to 5.5
Pin Count	18
Timers	2 x 8-bit, 1 x 16-bit
ADC Input	5 ch, 10-bit
Capture/Compare/PWM Peripherals	1 Input Capture, 1 CCP
Digital Communication Peripherals	1-SSP(SPI/I2C)
Data EEPROM/HEF (bytes)	128

Related Document:-


Brand/Manufacturer	Generic
Country Of Origin	China
Packer / Importer Address	Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP	Rs. 767 (Inclusive of all Taxes)

* Product Images are shown for illustrative purposes only and may differ from actual product.

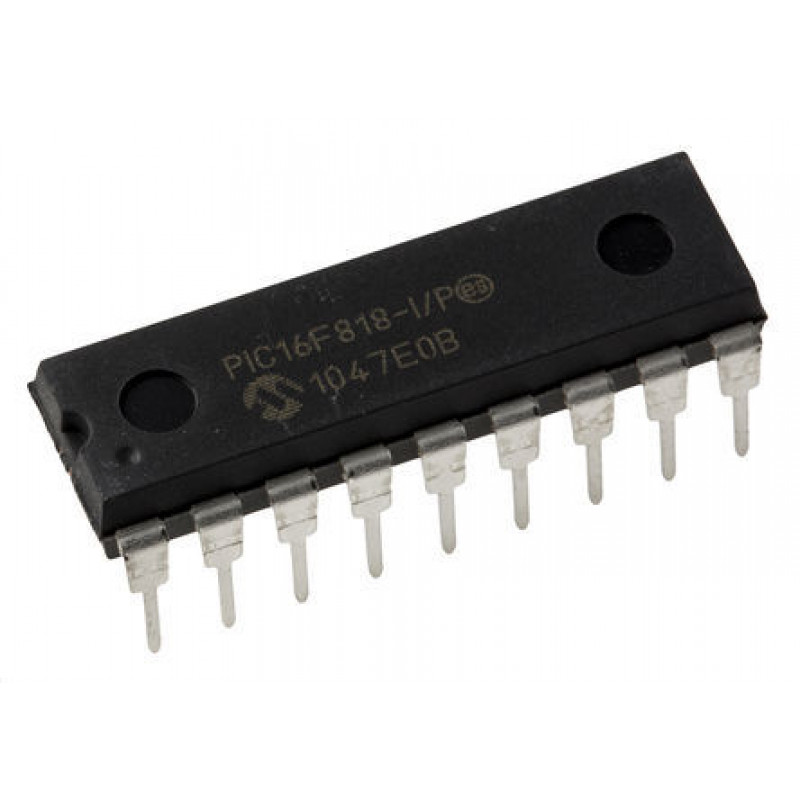

PIC16F818 Microcontroller
