The PIC17C44 is a High-Performance 8-Bit CMOS EPROM/ROM Microcontroller . The following are the features:-
• 33 I/O pins with individual direction control
• High current sink/source for direct LED drive - RA2 and RA3 are open drain, high voltage (12V), high current (60 mA), I/O
• Two capture inputs and two PWM outputs
- Captures are 16-bit, max resolution 160 ns
- PWM resolution is 1- to 10-bit
• TMR0: 16-bit timer/counter with 8-bit programmable prescaler
• TMR1: 8-bit timer/counter
Specification:-
| Parameter | Value |
| Program Memory Type | Flash |
| Program Memory Size (KB) | 8.25 |
| SRAM (B) | 454 |
| Temperature Range (°C) | -40 to 85 |
| Operating Voltage Range (V) | 2 to 6 |
| Pin Count | 40 |
| Timers | 2 x 8-bit, 1 x 16-bit |
Related Document:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 153.4 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

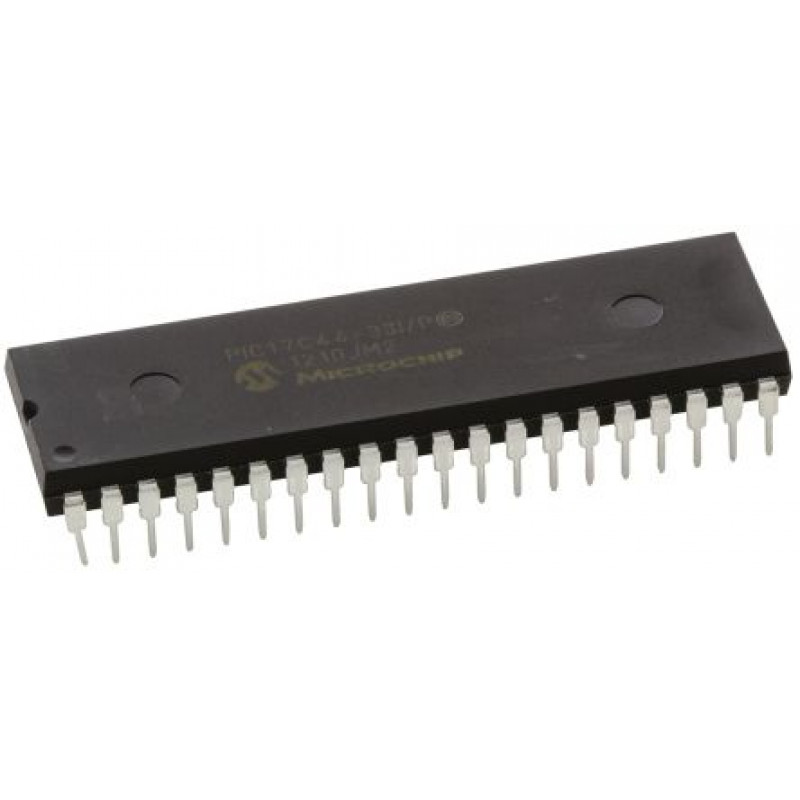

PIC17C44 Microcontroller
- Product Code: EC-2162
- Availability: 343
-
Rs.130.00
- (Excluding 18% GST)
