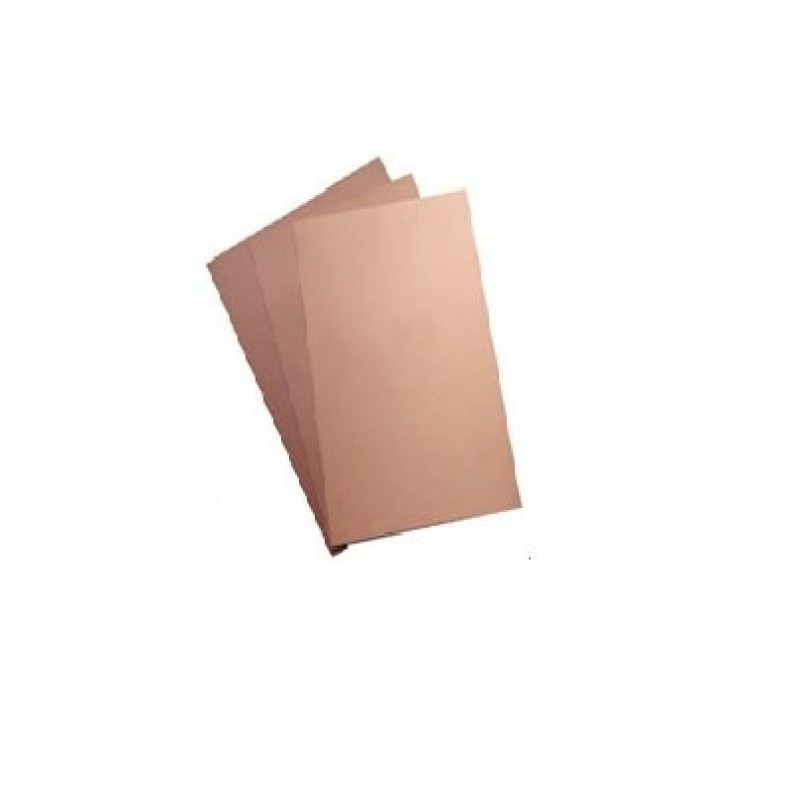

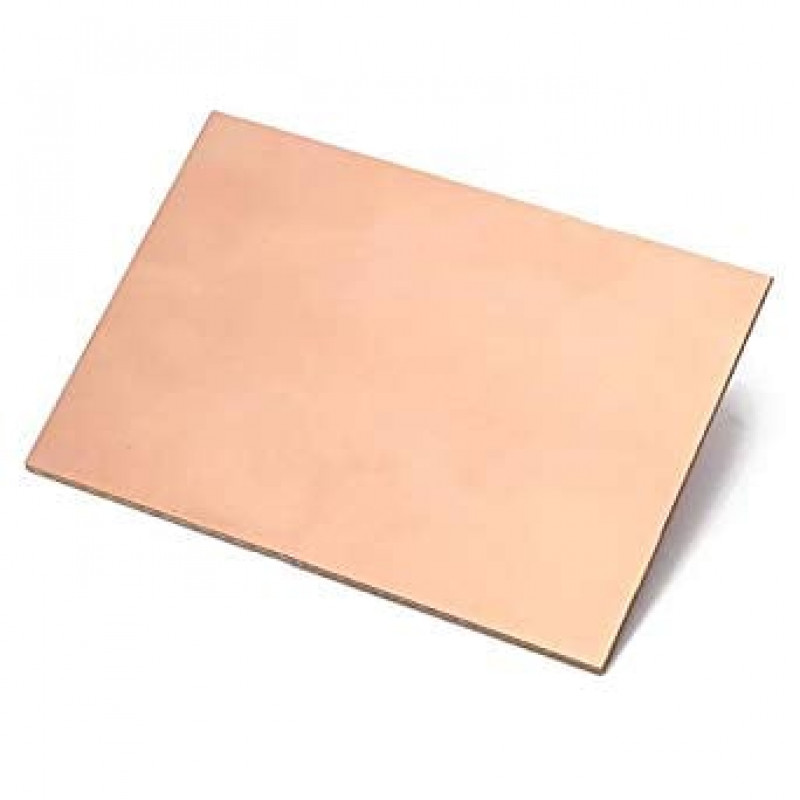

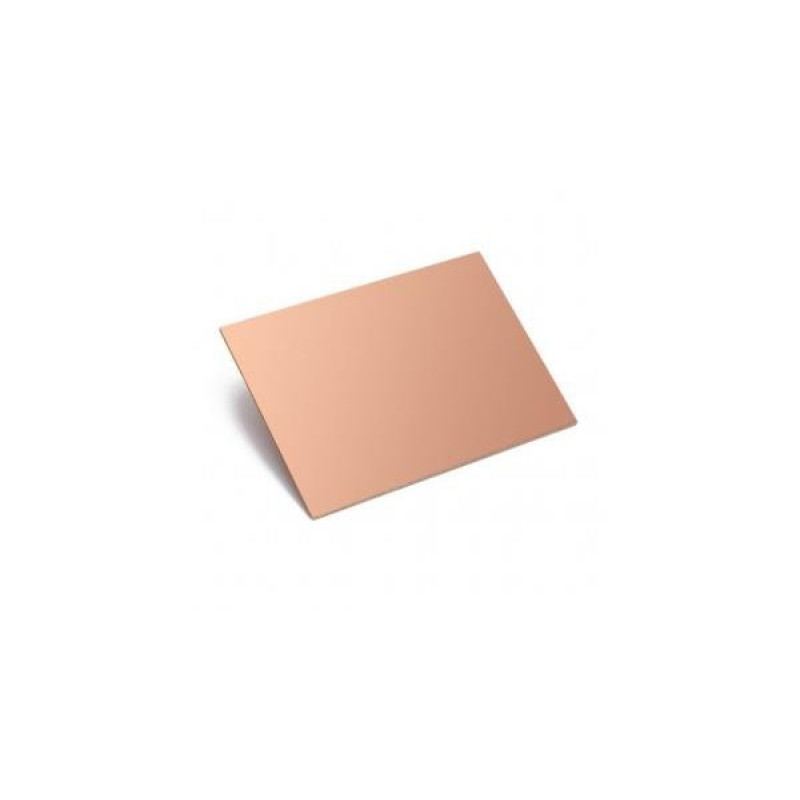

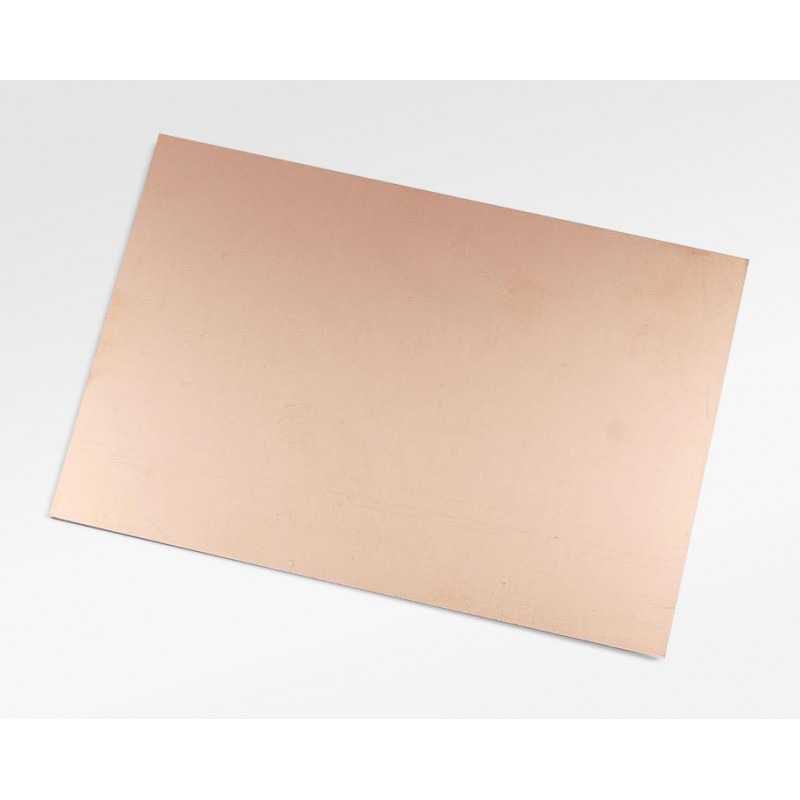

FR4 Copper Clad Laminate Double Side PCB is one of the most commonly used PCBs in the world. It consists of a glass fiber laminate as a reinforcing material on the core, with copper-clad on both sides.
The core in itself has copper in it along with two layers on top and bottom. Hence the name copper clad. With the addition or removal of the glass fibre epoxy layers, the thickness of the PCB can be controlled. The glass fibre epoxy layers provide the necessary electrical insulation between the two copper foils and also gives the laminate rigidity.
Here, FR in the FR4 stands for fire retardant.
It is widely used for prototyping as the circuit can be designed easily.
Note:
1. The PCB may have scratches as it is cleaned before shipping.
2. The product dimensions may vary from the images.
Features:
- Foil: Copper.
- Ideal for prototyping.
Package Includes:
1 x FR4 Copper Clad Laminate Double Side PCB.
Specifications :-
| Material | Glass fibre epoxy reinforced copper core |
| Length (mm) | 100 |
| Width (mm) | 75 |
| Height (mm) | 1.5 |
| Weight (gm) | 25 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 115.64 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
FR4 Copper Clad Laminate Double Side PCB 100 x 75 x 1.5 mm
- Product Code: EC-9331
- Availability: 14
-
Rs.98.00
- (Excluding 18% GST)
