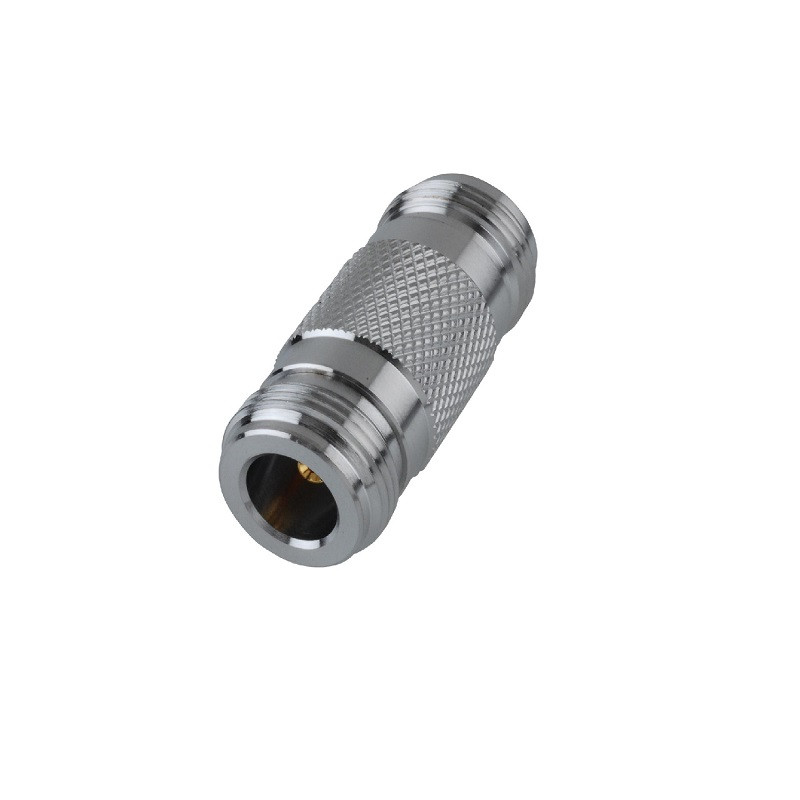

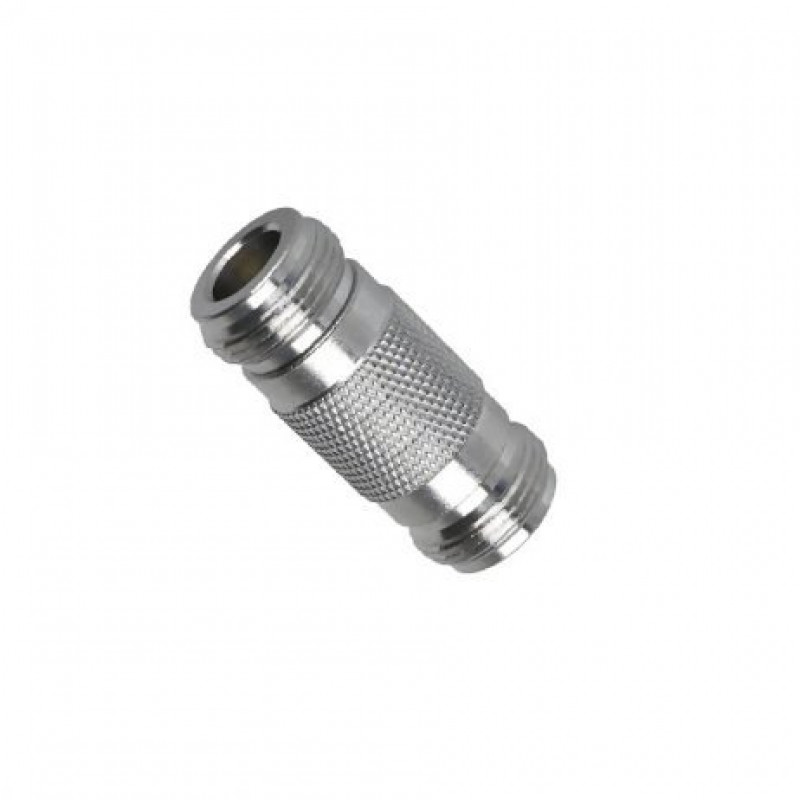

This is a 172123 N to N Jack RF / Coaxial Straight Adapter, 50 ohm. The 172123 is an N-type Jack to N-type Jack Straight Adapter with gold-plated phosphor bronze contact. Body made up of brass with white bronze finish and PTFE insulator. This adapter is commonly used in applications requiring 2 dissimilar RF interfaces to be connected.


Features:

  1. Broad Line of Military, Industrial, and Commercial Grade Products Available
  2. Excellent RF Performance from DC to 11 GHz
  3. Accommodates a Wide Range of Medium- to Miniature-Sized RG Coaxial Cables in a Rugged, Medium-Sized Design
  4. Threaded Coupling Mechanism Is Ideal for Vibration Resistance


Package Includes:

1 x 172123 N to N Jack RF / Coaxial Straight Adapter, 50 ohm



Specifications :-

Body Finish

White Bronze

Body Material

Brass

Contact Material

Phosphor Bronze

Frequency (Max GHz)

11

Impedance (Ohms)

50

Insulator Material

PTFE

Operating Temperature Range (C)

-40 to 85

Weight(gm)

44



Brand/Manufacturer Generic
Country Of Origin
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 895.62 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

172123 N to N Jack RF / Coaxial Straight Adapter 50 ohm

  • Product Code: EC-7502
  • Availability: 2
  • Rs.779.00
  • (Excluding 18% GST)
