The 1N34A is a point contact diode in a DO7 type package employing N−form Germanium and gives an efficient and excellent linearity when used in TV image detection, FM detection, radio AM detection, etc.
Specification:-
| Symbol | Parameter | Value | Units |
| PIV | Peak Inverse Voltage, Repetitive (IR = 1mA) | 65 | V |
| VR | Reverse Voltage DC | 20 | V |
| IFSM | Peak Forward Surge Current, Non−Repetitive (t = 1sec) | 0.5 | V |
| IFSR | Peak Forward Surge Current, Repetitive | 200 | m A |
| IFSM | Peak Forward Surge Current 8.3ms single half sine-wave superimposed on rated load | 50 | A |
| IO | Average Rectified Output Current | 1 | V |
| TJ | Operating Junction Temperature | 75 | ℃ |
| Tstg | Storage Temperature Range | 55 to +75 | ℃ |
Related Document:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 10.62 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

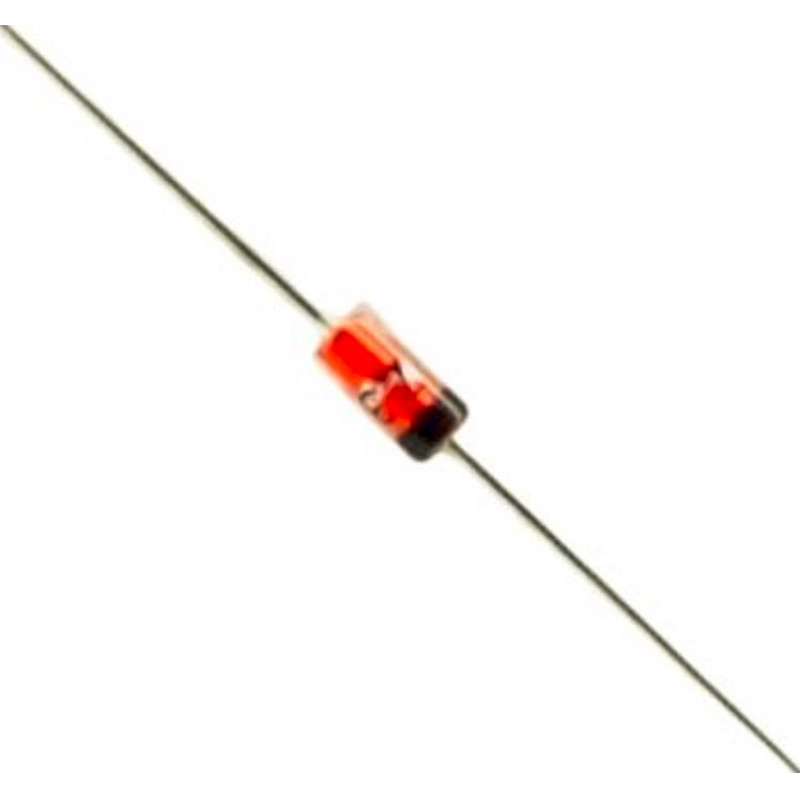

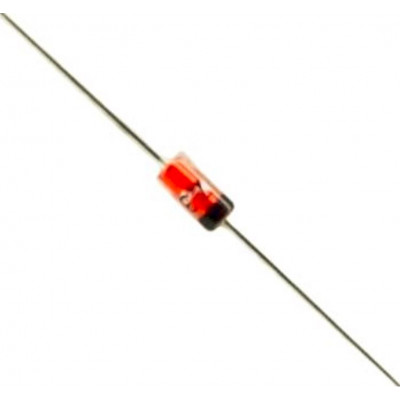

1N34 Germanium Diode
- Product Code: EC-2214
- Availability: 1521
-
Rs.9.00
- (Excluding 18% GST)
