The IN4936 Axial−lead, fast−recovery rectifiers are designed for special applications such as DC power supplies, inverters, converters, ultrasonic systems, choppers, low RF interference and free wheeling diodes. A complete line of fast recovery rectifiers having typical recovery time of 150 nanoseconds providing high efficiency at frequencies to 250 kHz.
Features:-
• Shipped in Plastic Bags; 1,000 per Bag
• Available Tape and Reeled; 5,000 per Reel, by Adding a “RL” Suffix to the Part Number
• These are Pb−Free Devices
• Fast Switching for High Efficiency
• Low Forward Voltage Drop
• Low Leakage Current
• High Forward Surge Capability
Mechanical Characteristics:-
• Case: Epoxy, Molded
• Weight: 0.4 Gram (Approximately)
• Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable
• Lead Temperature for Soldering Purposes: 260°C Max. for 10 Seconds
• Polarity: Cathode Indicated by Polarity Band
Specification:-
| Symbol | Parameter | Value | Units |
| VRRM | Peak Repetitive Reverse Voltage | 400 | V |
| VRWM | Working Peak Reverse Voltage | 400 | V |
| VR | DC Blocking Voltage | 400 | V |
| VR(RMS) | RMS Reverse Voltage | 280 | V |
| VRSM | Non−Repetitive Peak Reverse Voltage | 450 | V |
| IO | Average Rectified Output Current | 1 | A |
| IFSM | Non-Repetitive Peak Forward Surge Current | 30 | A |
| TJ | Operating Junction Temperature Range | − 65 to +150 | °C |
| Tstg | Storage Temperature Range | − 65 to +150 | °C |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 15.93 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

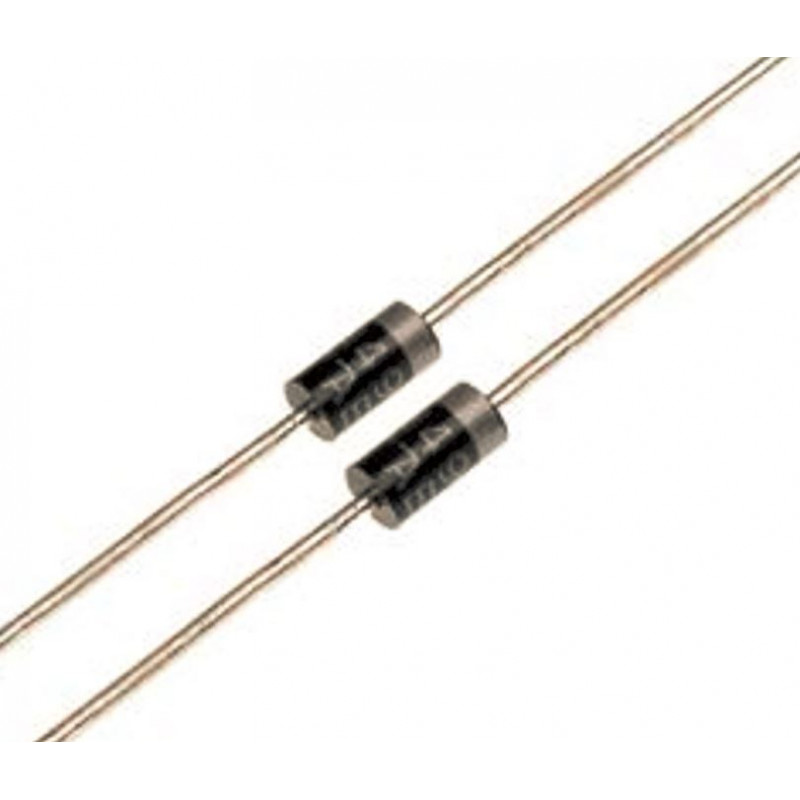

1N4936 400V 1A Fast Recovery Diode - 2 pieces pack
- Product Code: EC-0608
- Availability: 5068
-
Rs.8.50
- (Excluding 18% GST)
