• 1 Amp Bridge Rectifier - DB107

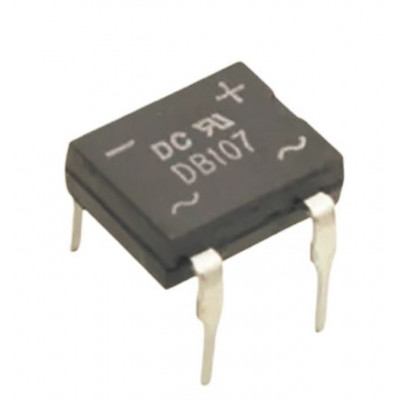

The DB107 is a single phase 1.0 Amp Glass Passivated Bridge Rectifier Case: DB-M, Molded plastic.

Mechanical Data:-

 Terminals: Plated leads solderable per MIL-STD-202, Method 208

 Polarity: as marked on case

 Mounting Position: Any

 Marking: Type Number

 Lead Free: For RoHS / Lead Free Version

Features:-

• Glass passivated die construction

• Low forward voltage drop

• High current capability

• High surge current capability

• Plastic material-UL flammability 94V-0

• This is a Pb − Free Device

• “-HF” suffix is for Halogen Free Device

• All SMC parts are traceable to the wafer lot

• Additional testing can be offered upon request

Specification:-

Symbol Parameter Value Units
VRRM  Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage 1000 V
VRWM
VR
VRMS RMS Reverse Voltage 700 V
IF(AV) Average Forward Output Current (Note 1) @ TC =100°C 1 A
IFSM Non-Repetitive Peak Forward Surge Current 8.3ms  45 A
Single half sine-wave superimposed on rated load
I2 t I2t Rating for Fusing (t < 8.3ms) 8.404 A 2s
