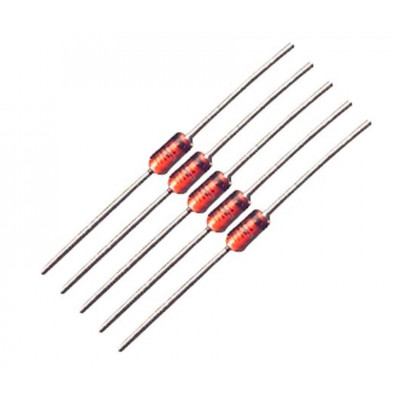

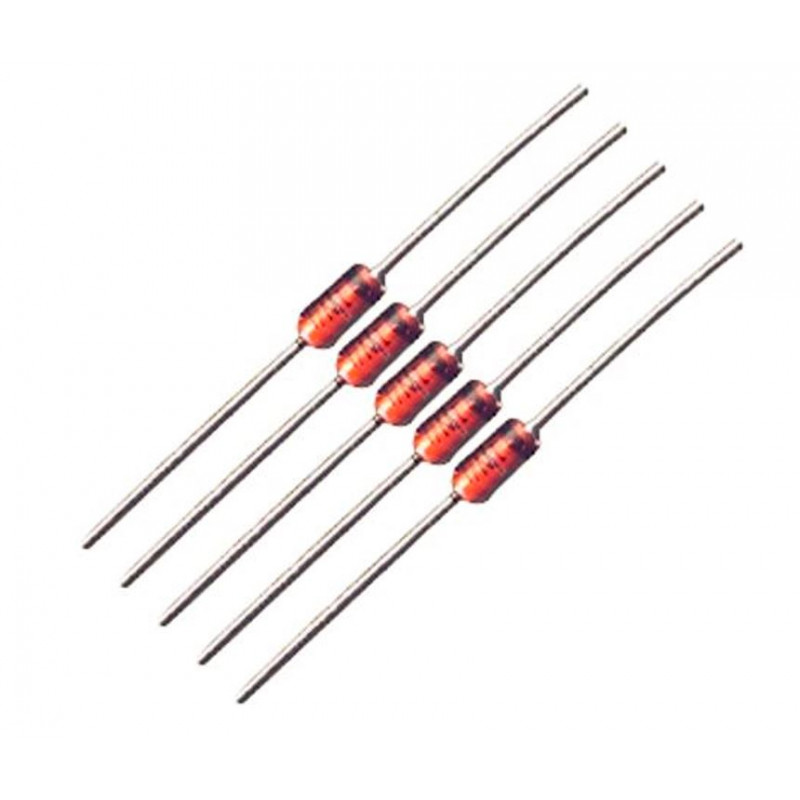

• 1N4148 Diode - 5 Pieces pack

The 1N4148 is a high-speed switching diodes fabricated in planar technology, and encapsulated in hermetically.

Features:-

• Fast Switching Speed

• General Purpose Rectification

• Silicon Epitaxial Planar Construction

Lead Free Finish, RoHS Compliant (Note 2)

High switching speed: max. 4 ns

Continuous reverse voltage: max. 100 V

Repetitive peak reverse voltage: max. 100 V

Repetitive peak forward current: max. 450 mA.

High speed silicon switching diodes, axial leaded.

General purpose, industrial, military and space applications.

Hermetically sealed glass with a stud on either side of the glass passivated chip provides excellent stability.

Extremely low leakage and very high reliability

Mechanical Data:-

 Case: DO-35

• Case Material: Glass

• Moisture Sensitivity: Level 1 per J-STD-020D

• Leads: Solderable per MIL-STD-202, Method 208

• Polarity: Cathode Band

• Marking: Type Number

• Ordering Information: See Page 2

• Weight: 0.13 grams (approximate)

Applications:- High-speed switching

Specification:-

Symbol Parameter Value Units
VRM Non-Repetitive Peak Reverse Voltage 100 V
VRRM Peak Repetitive Reverse Voltage 100 V
VRWM Working Peak Reverse Voltage 75 V
VR DC Blocking Voltage 75 V
VR(RMS) RMS Reverse Voltage 53 A
IFM Forward Continuous Current 300 m A
IO Average Rectified Output Current 150 m A
IFSM Non-Repetitive Peak Forward Surge Current 1 A


Related Document:-

 IN4148 Diode Data Sheet
