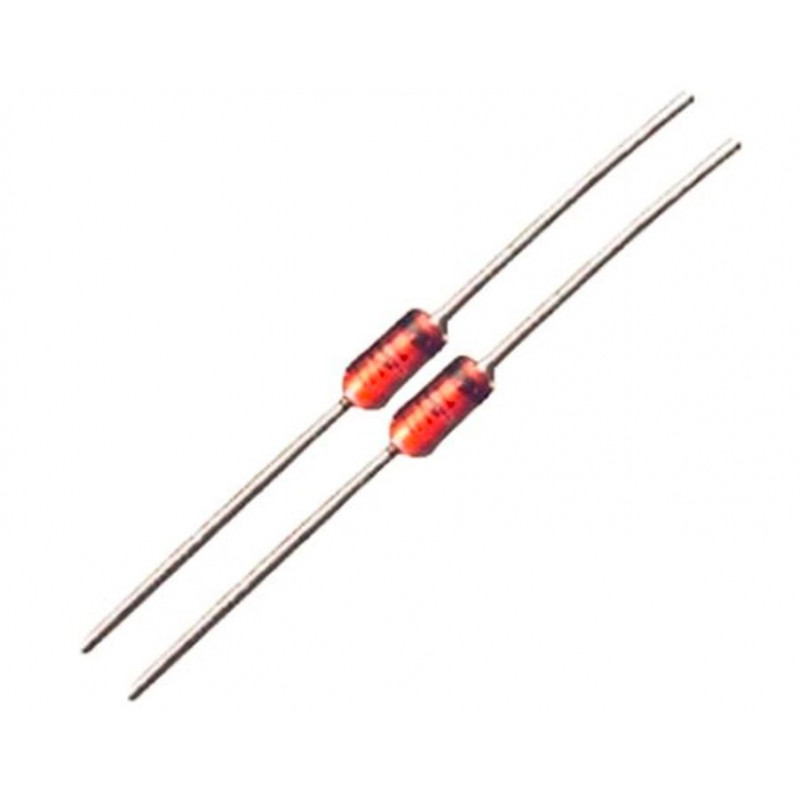

• 1N914 Diode - Small Signal Fast Switching Diode - 2 pieces pack

The 1N914 is high-speed switching diodes fabricated in planar technology, and encapsulated in a hermetically sealed leaded glass SOD27 (DO-35) package.

Features:-

High switching speed: max. 4 ns

Continuous reverse voltage:max. 75 V

Repetitive peak reverse voltage:max. 100 V

Repetitive peak forward current: max. 225 mA

Pb / RoHS Free

Hermetically sealed leaded glass SOD27 (DO-35) package

Fast switching speed

High reliability and conductance

For General Purpose Switching Applications

Mechanical Characteristics:-

• Case: DO-35, Glass

Terminals: Solderable per MIL-STD-202, Method 208

Marking: Type Number

Weight: 0.013 grams (approx.)

Specification:-

Symbol Parameter Value Units
VRRM Peak Repetitive Reverse Voltage 75 V
VRWM Working Peak Reverse Voltage 75 V
VR DC Blocking Voltage 75 V
VRM Non-Repetitive Peak Reverse Voltage 100 V
VR(RMS) RMS Reverse Voltage 53 V
IO Average Rectified Output Current 75 m A
IFSM Non-Repetitive Peak Forward Surge Current 1 A
TJ Operating Junction Temperature Range − 65 to +175 °C
 Tstg Storage Temperature Range − 65 to +175 °C


Related Document:-

 IN914 Diode Data Sheet
