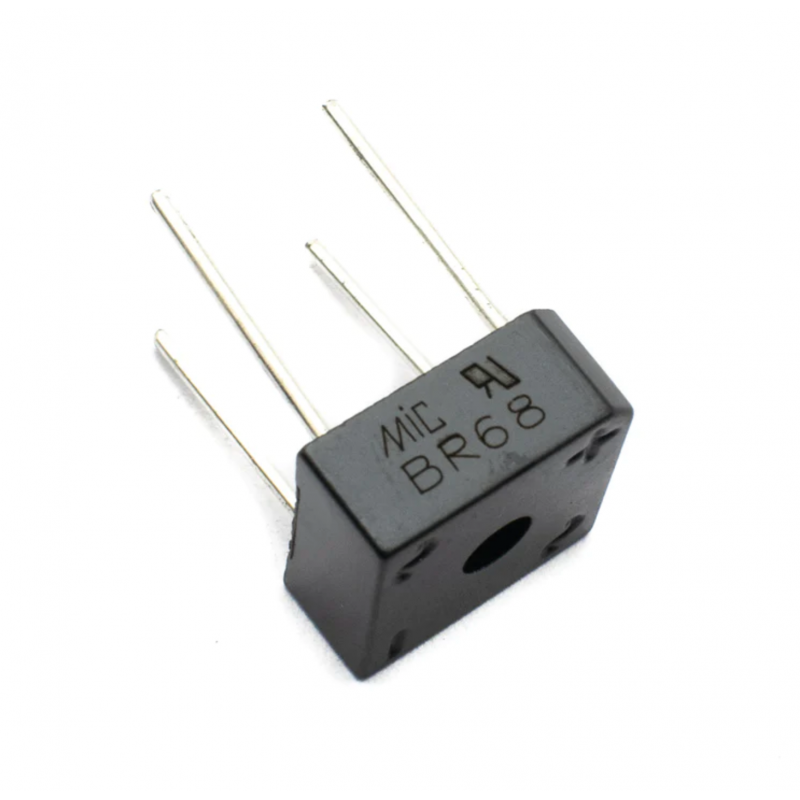

The BR68 is a Single Phase 6 Amp Bridge Rectifier. Its Reverse Voltage Rating is 800V and forward Voltage rating is 1V. It is 4 Pin through hole type rectifier.
Features:-
• Ideal for printed circuit board
• LOW forward voltage drop
• LOW leakage current
• Types from 600 V up to 800 V
• Not ESD Sensitive
Mechanical Characteristics:-
• Case: Molded plastic body
• Mounting: Hole thru for #6 screw
• Mounting position: Any
• Lead: As marked
Specification:-
| Symbol | Parameter | Value | Units |
| VRRM | Peak Repetitive Reverse Voltage | 800 | V |
| VDC | Maximum DC blocking voltage | 800 | V |
| VRMS | Maximum RMS voltage | 560 | V |
| TJ | Operating Junction Temperature Range | − 65 to +125 | °C |
| Tstg | Storage Temperature Range | − 65 to +150 | °C |
Related Document:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 30.68 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
BR68 6A 800V Bridge Rectifier
- Product Code: EC-0602
- Availability: 1337
-
Rs.26.00
- (Excluding 18% GST)
