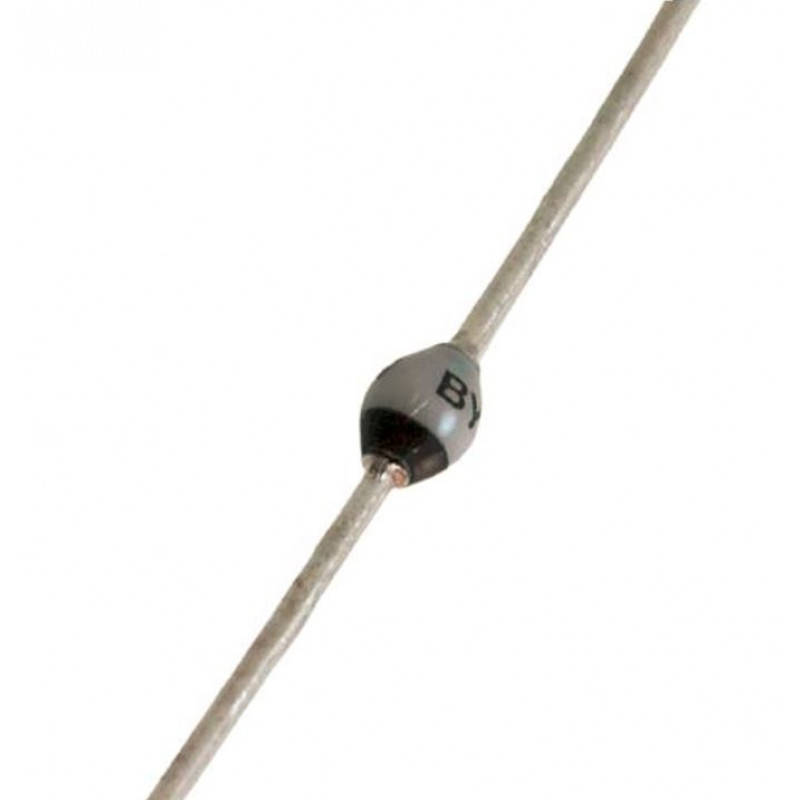

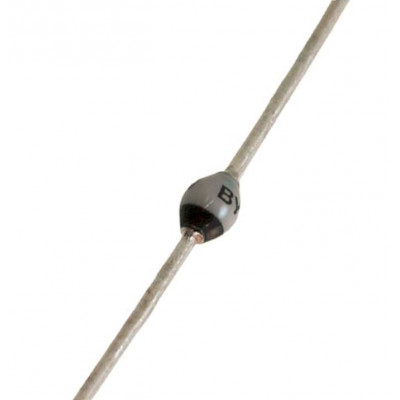

The BYV95C is an Avalanche Fast Recovery Rectifier Diodes with a PRV of 200 - 1000 Volts and 1.5 Amperes. The following features are:

High current capability
High surge current capability
High reliability
Low reverse current
Low forward voltage drop
Fast switching for high efficiency
High temperature metallurgically bonded construction
Hermetically sealed package
Glass passivated cavity-free junction
1.5 Ampere operation at TA=55°C with no thermal runaway
Typical IR less than 0.1µA
Capable of meeting environmental standards of MIL-S-19500
Fast switching for high efficiency
High temperature soldering guaranteed: 350°C/10 seconds, 0.375" (9.5mm) lead length, 5 lbs. (2.3kg) tension

Mechanical Characteristics:-

• Case : D2 Molded plastic

• Epoxy : UL94V-O rate flame retardant

• Lead : Axial lead solderable per MIL-STD-202, Method 208 guaranteed

• Polarity : Color band denotes cathode end

• Mounting position : Any

• Weight : 0.465 gram

Specification:-

Symbol	Parameter	Value	Units
VRRM	Peak Repetitive Reverse Voltage	600	V
VRMS	Maximum RMS Voltage	420	V
VDC	Maximum DC Blocking Voltage	600	V
IF(AV)	Maximum Average Forward Rectified Current	1.5	A
IFSM	Non-Repetitive Peak Forward Surge Current	35	A
TJ	Operating Junction Temperature Range	− 65 to +175	°C
Tstg	Storage Temperature Range	− 65 to +175	°C

Related Document:-

BYV95 Rectifier Diode Data Sheet


Brand/Manufacturer	Generic
Country Of Origin	China
Packer / Importer Address	Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.

* Product Images are shown for illustrative purposes only and may differ from actual product.
