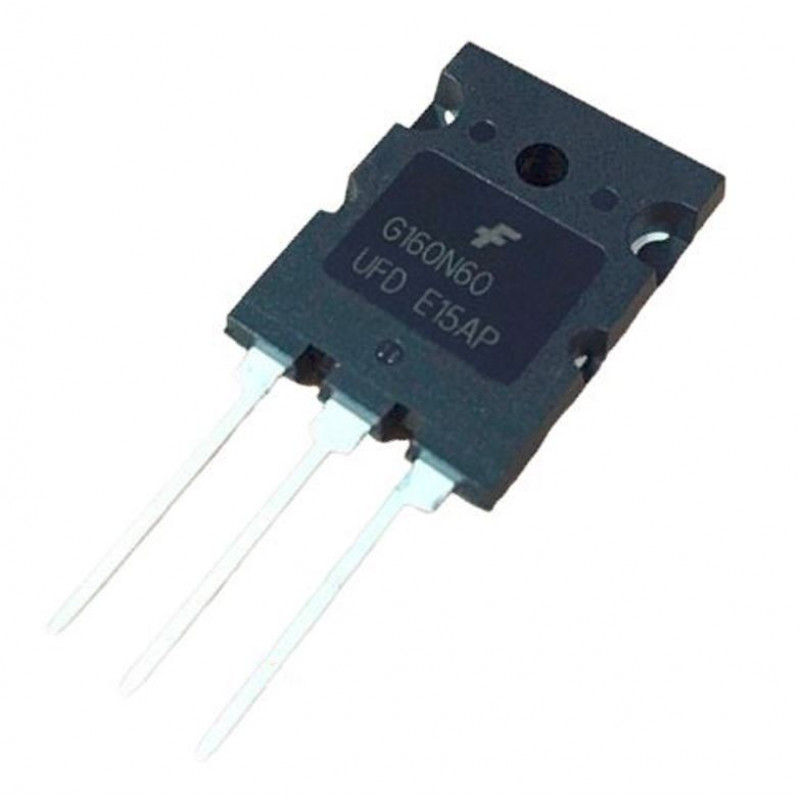

  • G160N60 IGBT - 600V 50A Ultra-Fast IGBT

The G160N60 of Insulated Gate Bipolar Transistors (IGBTs) provides low conduction and switching losses. The UFD series is designed for applications such as motor control and general inverters where high speed switching is a required feature.

Applications:-

AC & DC motor controls

General purpose inverters

Robotics, servo controls

Power supplies.

Features:-

• High speed switching

• Low saturation voltage : VCE(sat) = 2.1 V @ IC = 80A

• High input impedance

• CO-PAK, IGBT with FRD: trr = 75nS (typ.)

Specification:-

Symbol Parameter Ratings Units
VCES Collector-emitter voltage 600 V
VGES DC collector curren ±20
V
IC Collector Current @ TC = 25°C 160 A
Collector Current @ TC = 100°C 80
ICM Pulsed Collector Current 300 A
IF Diode Continuous Forward Current @ TC =100°C 25 A
IFM Diode Maximum Forward Current 280 A
PD Maximum Power Dissipation @ TC = 25°C 250 W
Maximum Power Dissipation @ TC = 100°C 100
TJ Operating Junction Temperature -55 to +150 °C
Tstg Storage Temperature Range -55 to +150 °C
TL Maximum Lead Temp. for Soldering Purposes 300 °C


Related Document:-

 G160N60 IGBT Data Sheet


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 442.5 (Inclusive of all Taxes)
