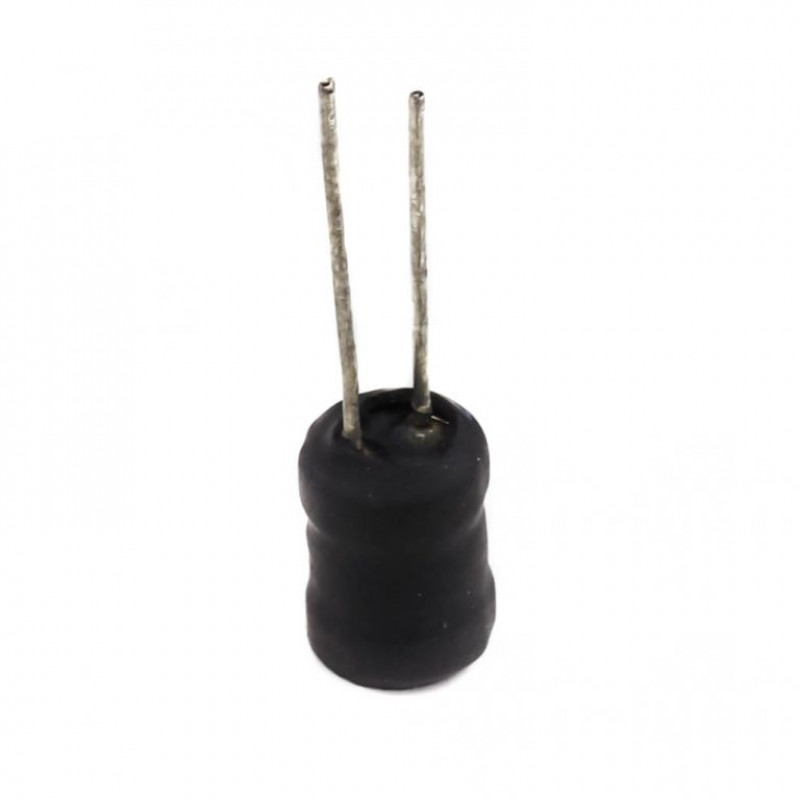

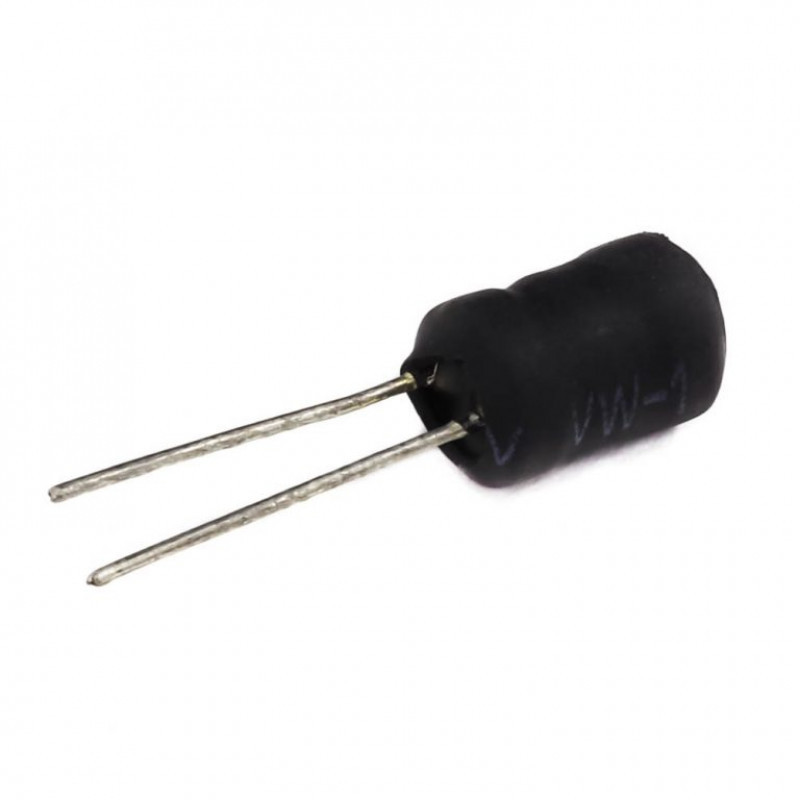

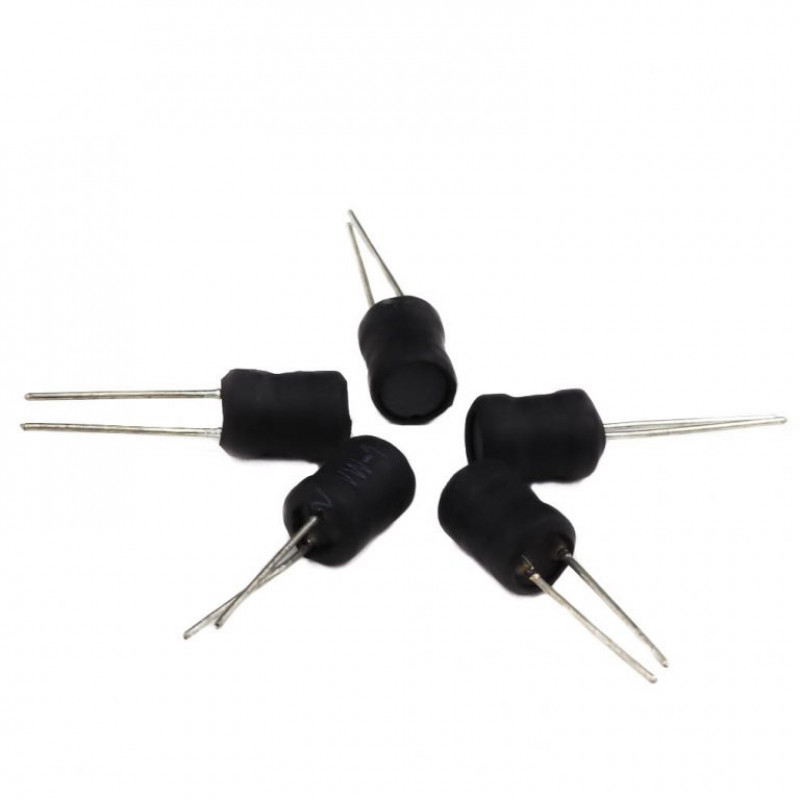

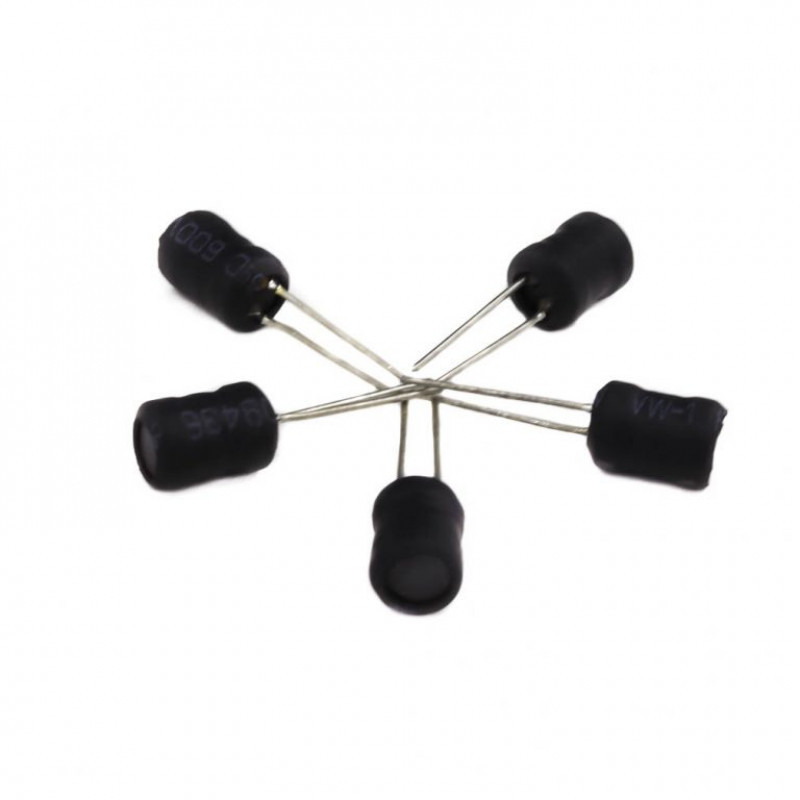

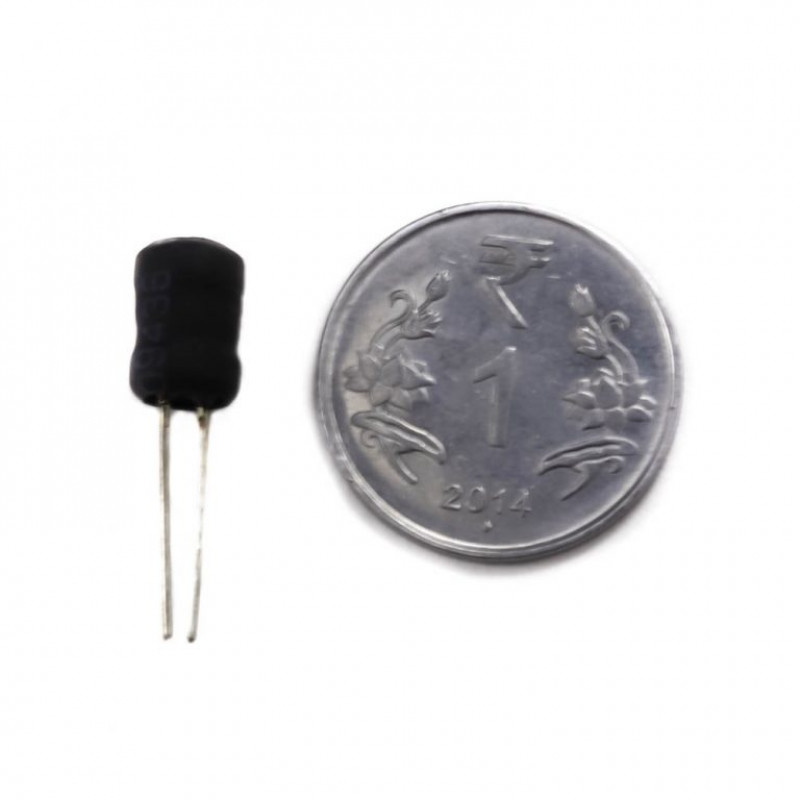

2.2mH 9x12mm Radial Leaded Power Inductor is a small choke coil power inductor. It has a wire wound on the core(magnetic or air), with leads attached to it for through-hole mounting. The power inductor also known as a choke coil, choke or differential mode inductors, is used to limit the alternating current through the coil.
It has a high Q factor, high self-resonance frequency, small magnetic flux leakage. Also, the power inductor has good magnetic shielding and is RoHS free.
Applications:
- Motherboards for laptop and desktop computers.
- DC/DC converter in distributed power systems or VRM Applications.
- Inductor for general purpose use.
Features:
- Small size.
- High Q factor.
- High self-resonance frequency.
- Small magnetic flux leakage.
- Magnetically shielded.
- RoHS free.
Package Includes:
1 x 2.2mH 9x12mm Radial Leaded Power Inductor
Additional information
| Inductance | 2.2mH |
| Tolerance(%) | 10 |
| Mounting Type | Through Hole |
| DC Resistance (DCR)(m) at 20C | 1.8 |
| Current Rating (A) | 0.27 |
| Frequency(Hz) | 1000 |
| Operating Temperature Range (C) | -40 to 85 |
| Length (mm) | 9 |
| Width (mm) | 12 |
| Weight (gm) | 1 (approx) |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 12.98 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
2.2mH 9x12mm Radial Leaded Power Inductor
- Product Code: EC-4811
- Availability: 2158
-
Rs.13.00
- (Excluding 18% GST)
