This device is designed for low level analog switching, sample and hold circuits and chopper stabilized amplifiers. It's Source & Drain are interchangeable.
Features:-
- Low Error Voltage
- High-Speed Analog Circuit Performance
- Negligible “Off-Error,” Excellent Accuracy
- Good Frequency Response, Low Glitches
- Eliminates Additional Buffering
Detailed Specifications:-
| Transistor Polarity | N-Channel |
| Gate-Source Voltage (VGSS) | 35V |
| Drain-Source Current (IDSS) | 50mA |
| Drain-Source Resistance (Rds On) | 50Ohms |
| Input Capacitance (Ciss) | 2pF |
| Gate to Source Forward Voltage (VGS(F)) | 0.7V |
| Gate to Source Cutoff Voltage (VGS(OFF)) | 5V |
| Reverse Transfer Capacitance (Crss) | 5pF |
| Operating Temperature Range | -55 - 125°C |
| Power Dissipation (PD) | 625mW |
Related Documents:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 88.5 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

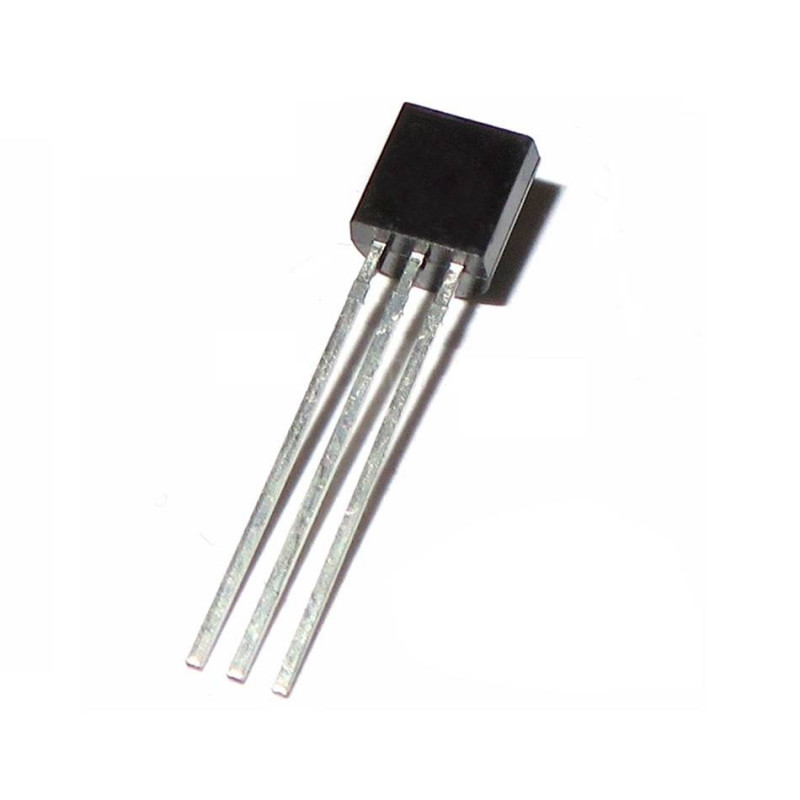

J112 JFET N-Channel Chopper Transistor 35V 50mA TO-92 Package
- Product Code: EC-2182
- Availability: 995
-
Rs.75.00
- (Excluding 18% GST)
