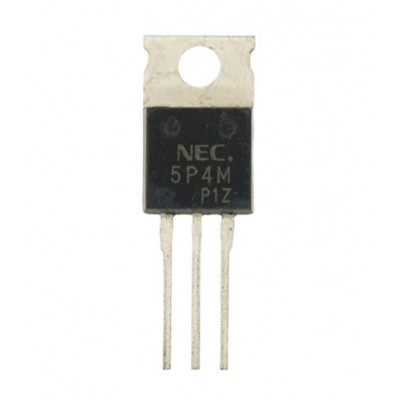

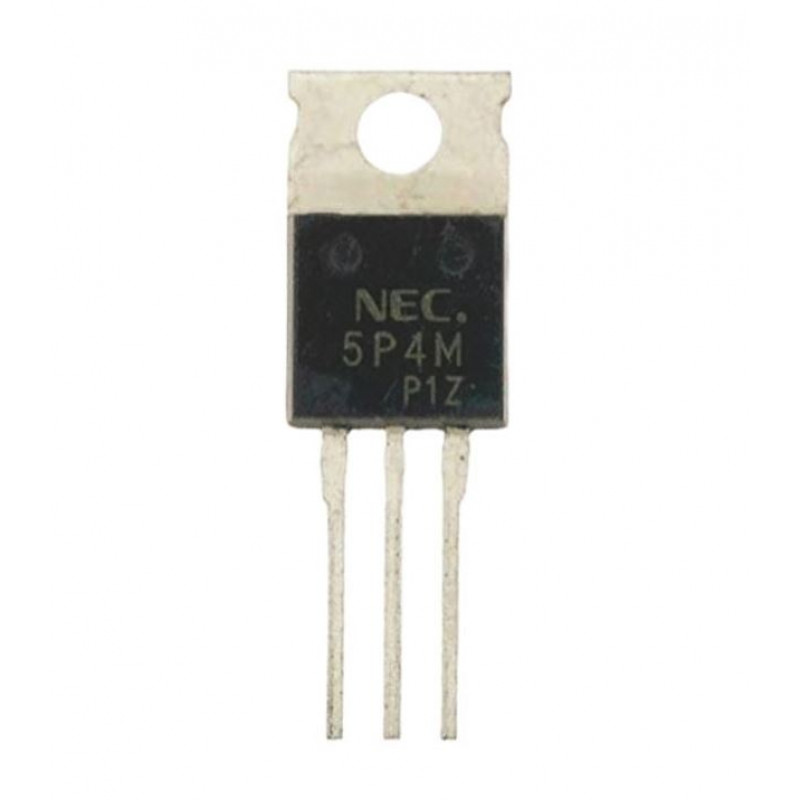

• 5P4M - 400V - 5A SCR - Thyristor

The 5P4M and 5P6M are a P gate all diffused mold type Thyristor granted 5 A On-state Average Current (TC = 103°C).

Features:-

• Easy installation by TO-220AB package.

• 80 A surge current.

• High Voltage. : VDRM, VRRM = 400 V (5P4M) : VDRM, VRRM = 600 V (5P6M)

Application:-

• Motor speed control for household appliance.

• Temperature control for heater and constant temperature box.

• Constant voltage power source and battery charger.

• Automotive application such as regulator.

• Various solid state relay etc.

 Specification:-

Symbol Parameter Ratings Units
VRSM Non-Repetitive Peak Reverse Voltage 500 V
VDSM Non-Repetitive Peak Off-state Voltage 500 V
VRRM Repetitive Peak Reverse Voltage 400 V
VDRM Repetitive Peak Off-state Voltage 400 V
IT(AV) Average on-state current 5 (TC = 103°C, θ = 180°, Single phase half wave) A
IT(RMS) Effective on-state current 8 A
ITSM Surge Non-Repetitive On-state Current 80 (f = 50 Hz, sine half wave, 1 cycle) A
∫ it 2 dt Fusing current 28 (1 ms ≤ t ≤ 10 ms) A2 s
dIT/dt Critical rate of rise of on-state current 50 A/µs
PGM Peak Gate Power Dissipation 5 (f ≥ 50 Hz, Duty≤ 10%) W
PG(IAV) Average Gate Power Dissipation 0.1 W
IFGM Peak Gate Forward Current 2 (f ≥ 50 Hz, Duty≤ 10%) A
VRGM Peak Gate Reverse Voltage 10 V
Tj Junction Temperature -40 to 125  °C
Tstg Storage Temperature -50 to 150  °C


Related Document:-

5P4M Data Sheet

Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

5P4M - 400V - 5A SCR - Thyristor

  • Product Code: EC-1937
  • Availability: 320
  • Rs.32.00
  • (Excluding 18% GST)

  • Wholesale Pricing
    Select Quantity Discount Price per piece
    1 - 9 0% 32.0000
    10 - 24 3% Rs.31.00
    25 - 49 6% Rs.30.00
    50 - 99 9% Rs.29.00
    100+ 16% Rs.27.00
