Planar passivated Silicon Controlled Rectifier (SCR) in a SOT78 plastic package intended for use in applications requiring good bidirectional blocking voltage capability, high surge current capability and high thermal cycling performance.
Features:-
• Good bidirectional blocking voltage capability
• High surge current capability
• High thermal cycling performance
Applications:-
• Ignition circuits
• Motor control
• Protection circuits
• Voltage regulation
• Various solid state relay etc.
Specification:-
| Symbol | Parameter | Ratings | Units |
| VRRM | Repetitive Peak Reverse Voltage | 500 | V |
| VDRM | Repetitive Peak Off-state Voltage | 500 | V |
| IT(AV) | Average on-state current | 7.5 | A |
| IT(RMS) | Effective on-state current | 12 | A |
| ITSM | Non-Repetitive Peak On-state Current | 120 | A |
| Tj | Junction Temperature | 125 | °C |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
* Product Images are shown for illustrative purposes only and may differ from actual product.

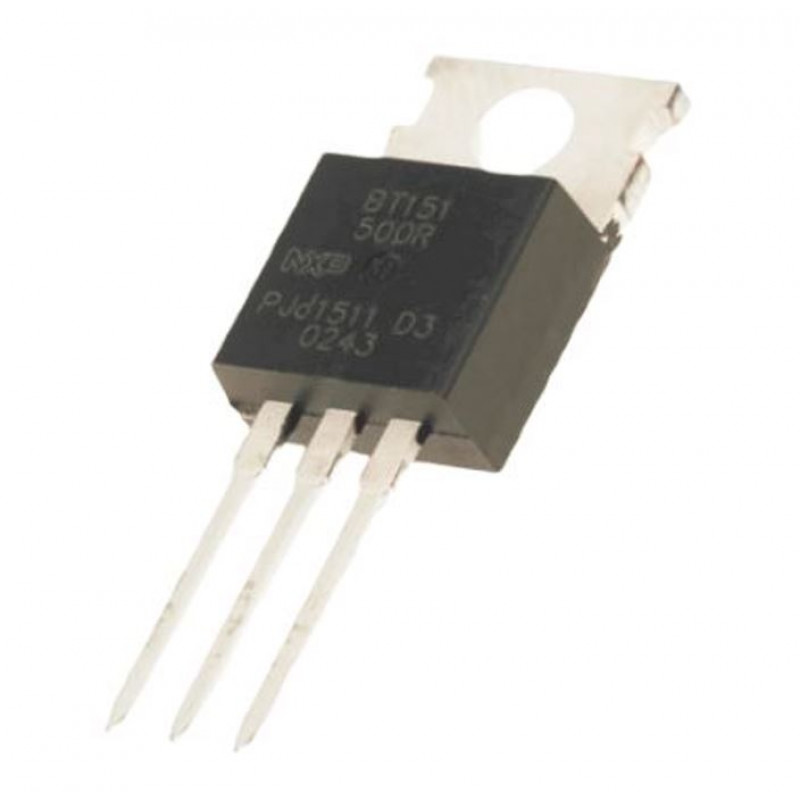

BT151 - 500V - 12A SCR - Thyristor
- Product Code: EC-1933
- Availability: 1483
-
Rs.37.76
-
-
Wholesale Pricing
Select Quantity Discount Price per piece 1 - 9 0% 37.76 10 - 24 6% Rs.35.40 25 - 49 13% Rs.33.04 50 - 99 22% Rs.29.50 100+ 31% Rs.25.96
