• BT169D SCR - Thyristor

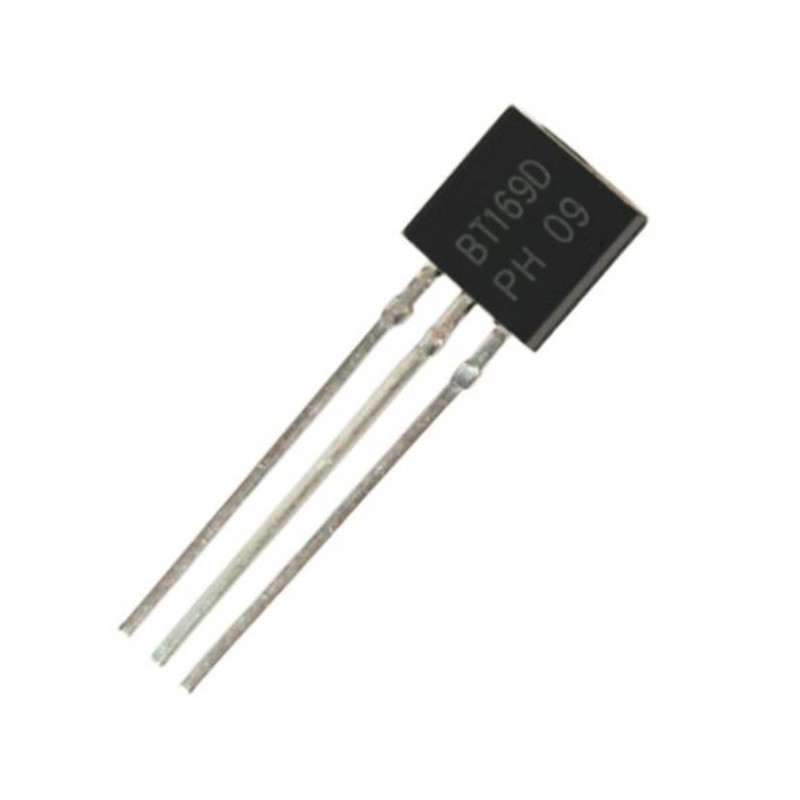

The BT169D is a Planar passivated Silicon Controlled Rectifier with sensitive gate in a SOT54 (TO-92) plastic package. This SCR is designed to be interfaced directly to micro controllers, logic ICs and other low power gate trigger circuits.

Features:

 Planar passivated for voltage ruggedness and reliability

• Sensitive gate

• Direct triggering from low power gate circuits and logic ICs

Applications:-

• Ignition circuits

• Lighting ballasts

• Protection circuits

• Switched Mode Power Supplies

 Specification:-

Symbol Parameter Ratings Units
VRRM Repetitive Peak Reverse Voltage 400 V
VDRM Repetitive Peak Off-state Voltage 400 V
IT(AV) Average on-state current 0.5 A
IT(RMS) Effective on-state current 0.8 A
ITSM Non-Repetitive Peak On-state Current 8 A
GT Gate trigger current 200 µA


Related Document:-

 BT169D SCR Data Sheet
