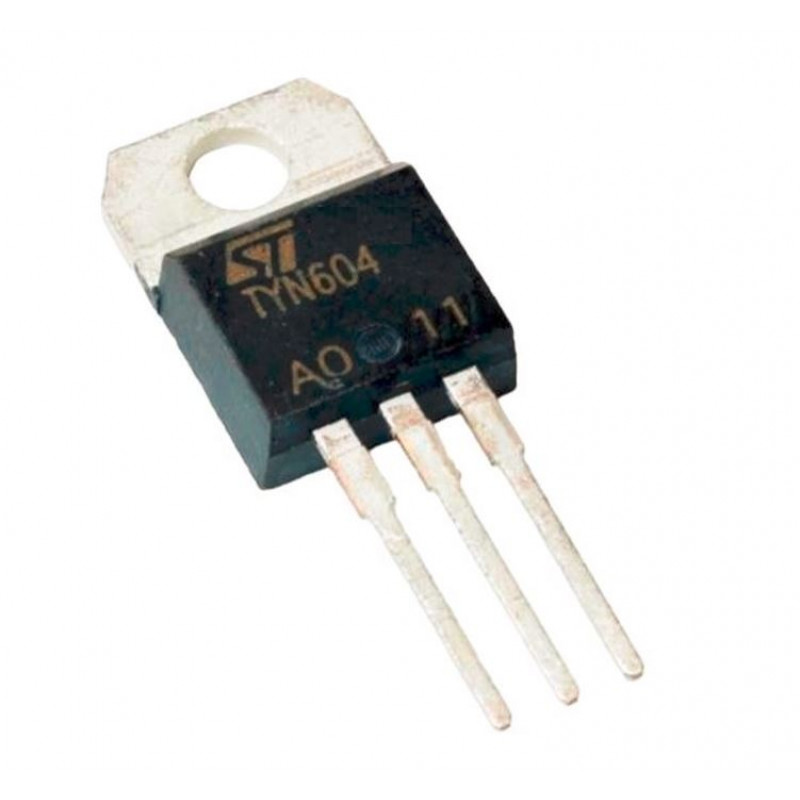

• TYN604 - 600V - 4A SCR - Thyristor

The TYN604 is controlled rectifiers uses a high performance glass passivated technology. This general purpose Family of silicon controlled rectifiers is designed for power supplies up to 400Hz on resisitive or inductive load.

Features:-

  • High Surge capability
  • High On-state current
  • High Stability and reliability

Specification:-

Symbol Parameter Ratings Units
IT(AV) Average on-state current 2.5 A
IT(RMS) Effective on-state current 4 A
ITSM Non-Repetitive Peak On-state Current  63 A
Tj Operating junction temperature range -40 to 125  °C
Tstg Storage Temperature -40 to 150  °C
I2t I2t Value for fusing 18 A2S
VRRM Tj = 125 °C 600 V
VDRM Repetitive peak off-state voltage 600 V
Tl Maximum lead temperature for soldering during 10 s at 4.5 mm from case 260  °C


Related Document:-

 TYN604 SCR Data Sheet
