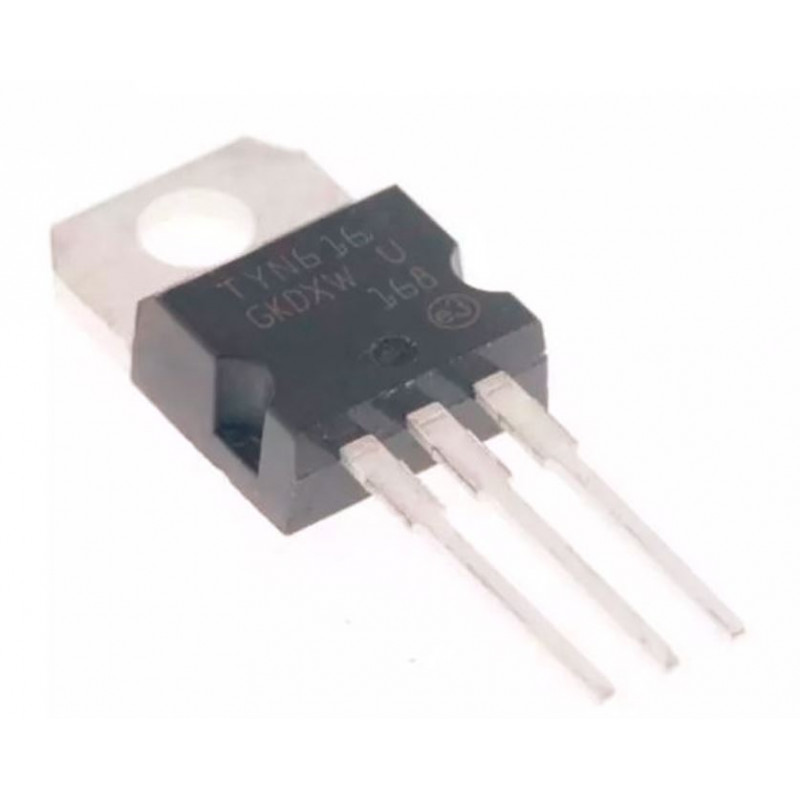

  • TYN616 - 600V - 16A SCR - Thyristor

The standard TYN61616 A SCRs series is suitable for general purpose applications. Using clip assembly technology, they provide a superior performance in surge current capabilities.

Features:-

 IT(RMS) =16 A

VDRM/VRRM = 600 to 1000 V

IGT = 25 mA

 Specification:-

Symbol Parameter Ratings Units
IT(AV) Average on-state current 10 A
IT(RMS) Effective on-state current 16 A
ITSM Non-Repetitive Peak On-state Current  200 A
Tj Operating junction temperature range -40 to 125  °C
Tstg Storage Temperature -40 to 150  °C
I2t I2t Value for fusing 180 A2S
VRGM Maximum peak reverse gate voltage 5 V
IGM Peak gate current A A


Related Document:-

 TYN616 SCR Data Sheet
