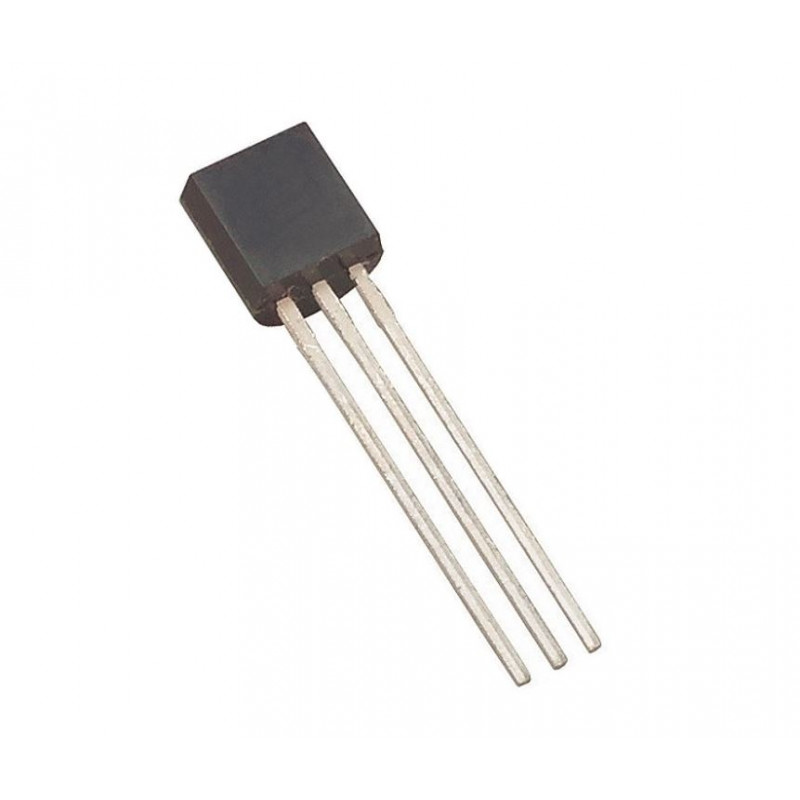

  • 2N5088 Transistor - NPN General Purpose Transistor - 5 Pieces Pack

2N5088 is a semiconductor device used to amplify or switch electronic signals and electrical power. It is composed of semiconductor material usually with at least three terminals for connection to an external circuit. A voltage or current applied to one pair of the transistor's terminals controls the current through another pair of terminals. Because the controlled (output) power can be higher than the controlling (input) power, a transistor can amplify a signal. Today, some transistors are packaged individually, but many more are found embedded in integrated circuits.


Features

• Advanced process technology

• Low error voltage

• Fast switching speed

• Full-voltage operation

• High power and current handling capability


Detailed Specifications



Transistor Polarity NPN
Collector-Base Voltage (VCBO) 35VDC
Collector-Emitter Voltage (VCEO) 30VDC
Emitter-Base Voltage (VEBO) 3VDC
Continuous Collector Current (IC) 50mA
Collector−Base Capacitance (Ccb) 4pF
Transition Frequency (fT) 50MHz
DC Current Gain (hFE) 300-900
Operating Temperature Range -55 - 150°C
Power Dissipation (PD) 1.5W


Related Documents

2N5088 Datasheet

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 23.01 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

2N5088 Transistor - NPN General Purpose Transistor - 5 Pieces Pack

  • Product Code: EC-2216
  • Availability: Out Of Stock
  • Rs.19.50
  • (Excluding 18% GST)
