BC307 is a semiconductor device used to amplify or switch electronic signals and electrical power. It is composed of semiconductor material usually with at least three terminals for connection to an external circuit. A voltage or current applied to one pair of the transistor's terminals controls the current through another pair of terminals. Because the controlled (output) power can be higher than the controlling (input) power, a transistor can amplify a signal. Today, some transistors are packaged individually, but many more are found embedded in integrated circuits.


Features:-

• Advanced process technology

• Low error voltage

• Fast switching speed

• Full-voltage operation

• High power and current handling capability


Detailed Specifications:-

Transistor Polarity PNP
Collector-Base Voltage (VCBO) 50VDC
Collector-Emitter Voltage (VCEO) 45VDC
Emitter-Base Voltage (VEBO) 5VDC
Continuous Collector Current (IC) 100mA
Common Base Capacitance (Ccbo) 6pF
Transition Frequency (fT) 280MHz
DC Current Gain (hFE) 120-800
Operating Temperature Range -55 - 150°C
Power Dissipation (PD) 1W


Related Documents:-

 BC307 Transistor Datasheet

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 10.62 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

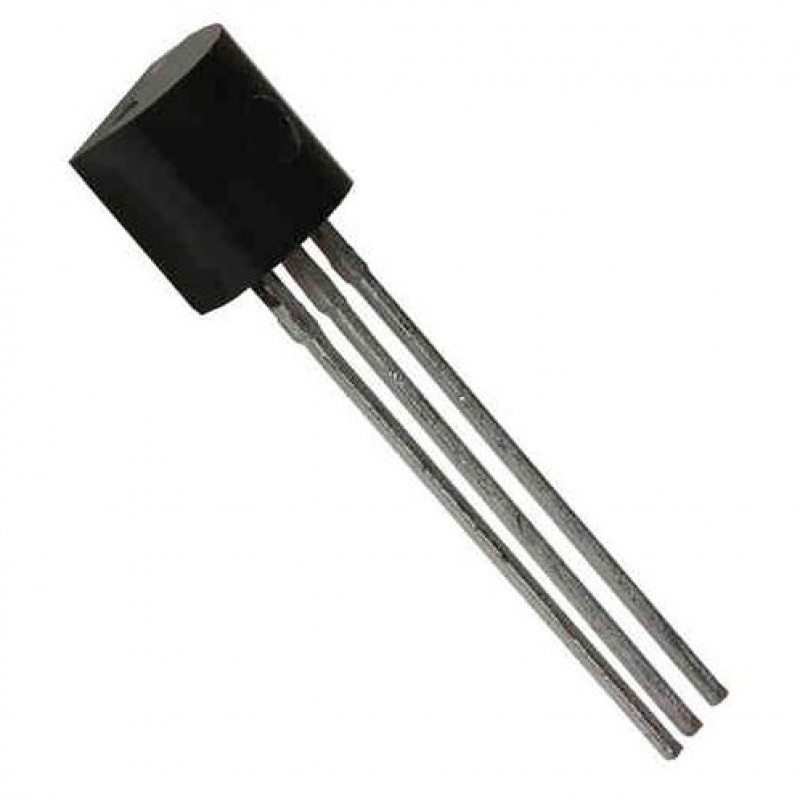

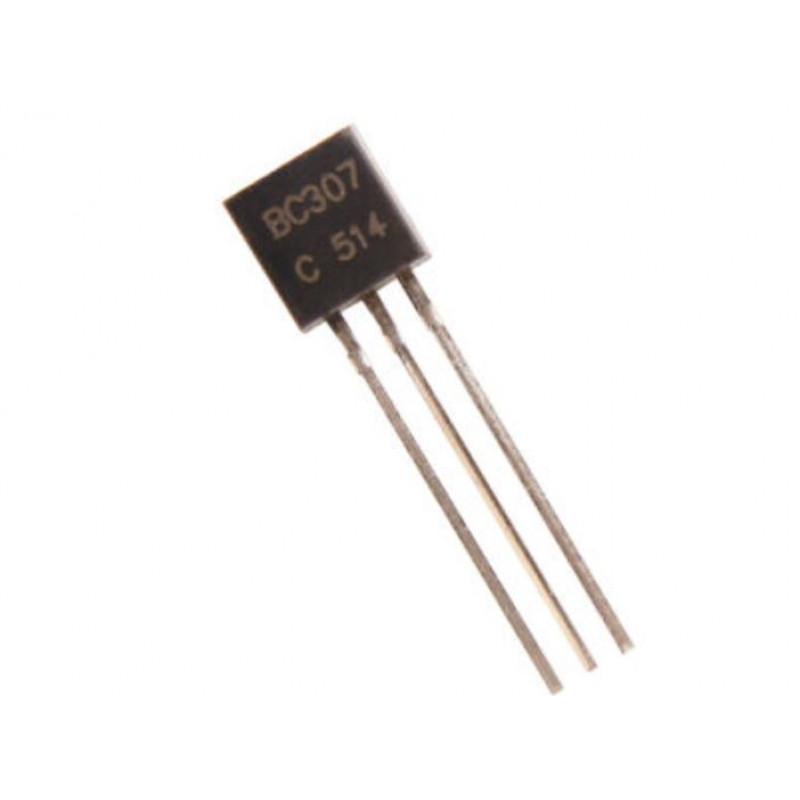

BC307 PNP General Purpose Amplifier Transistor 45V 100mA TO-92 Package

  • Product Code: EC-2348
  • Availability: 198
  • Rs.9.00
  • (Excluding 18% GST)
