BC308 is a semiconductor device used to amplify or switch electronic signals and electrical power. It is composed of semiconductor material usually with at least three terminals for connection to an external circuit. A voltage or current applied to one pair of the transistor's terminals controls the current through another pair of terminals. Because the controlled (output) power can be higher than the controlling (input) power, a transistor can amplify a signal. Today, some transistors are packaged individually, but many more are found embedded in integrated circuits.


Features:-

• Advanced process technology

• Low error voltage

• Fast switching speed

• Full-voltage operation

• High power and current handling capability


Detailed Specifications:-

Transistor Polarity PNP
Collector-Emitter Breakdown Voltage (BVCEO) 25V
Collector-Emitter Voltage (VCEO) 25V
Emitter-Base Voltage (VEBO) 5V
Continuous Collector Current (IC) 100mA
Output Capacitance (Cobo) 6pF
Transition Frequency (fT) 130MHz
DC Current Gain (hFE) 120-800
Operating Temperature Range -55 - 150°C
Collector Power Dissipation (PC) 500mW


Related Documents:-

 BC308 Transistor Datasheet

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 10.62 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

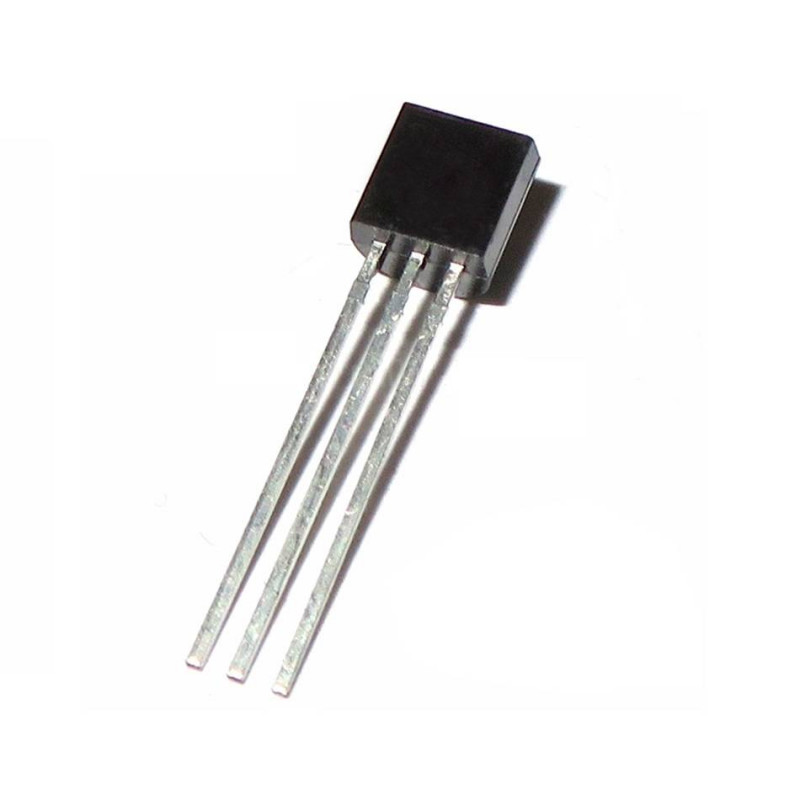

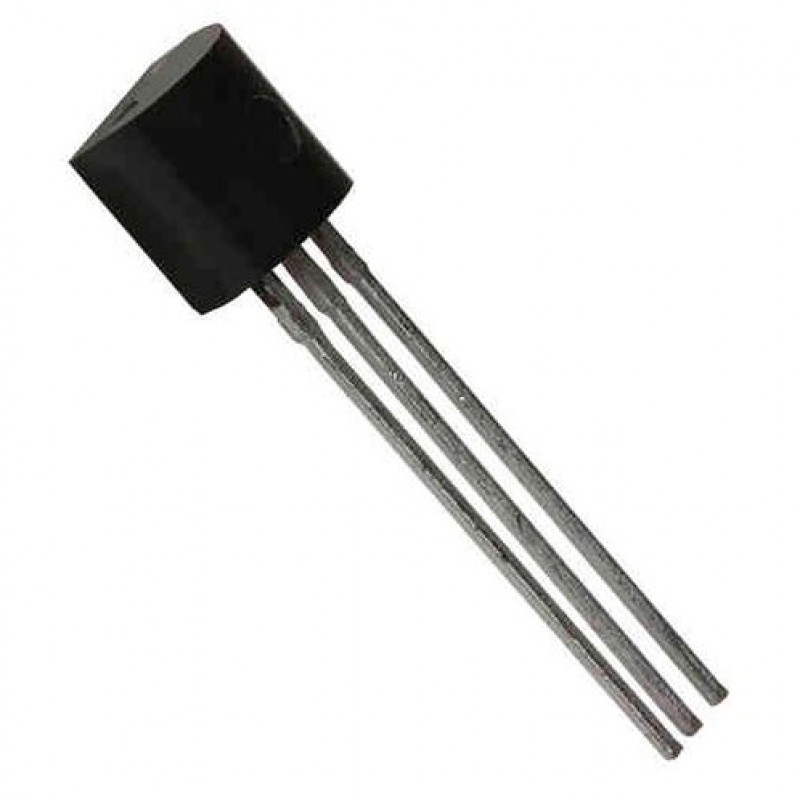

BC308 PNP General Purpose Amplifier Transistor 25V 100mA TO-92 Package

  • Product Code: EC-2349
  • Availability: 344
  • Rs.9.00
  • (Excluding 18% GST)
