2SD1594 is a semiconductor device used to amplify or switch electronic signals and electrical power. It is composed of semiconductor material usually with at least three terminals for connection to an external circuit. A voltage or current applied to one pair of the transistor's terminals controls the current through another pair of terminals. Because the controlled (output) power can be higher than the controlling (input) power, a transistor can amplify a signal. Today, some transistors are packaged individually, but many more are found embedded in integrated circuits.
Features:-
• Advanced process technology
• Low error voltage
• Fast switching speed
• Full-voltage operation
• High power and current handling capability
Detailed Specifications:-
| Transistor Polarity | NPN |
| Collector-Base Voltage (VCBO) | 150V |
| Collector-Emitter Voltage (VCEO) | 100V |
| Emitter-Base Voltage (VEBO) | 7V |
| Continuous Collector Current (IC) | 7A |
| Base Current (IB) | 3.5A |
| Collector current-Peak (ICP) | 15A |
| DC Current Gain (hFE) | 40-240 |
| Operating Temperature Range | -55 - 150°C |
| Power Dissipation (PD) | 40W |
Related Documents:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 159.3 (Inclusive of all Taxes) |

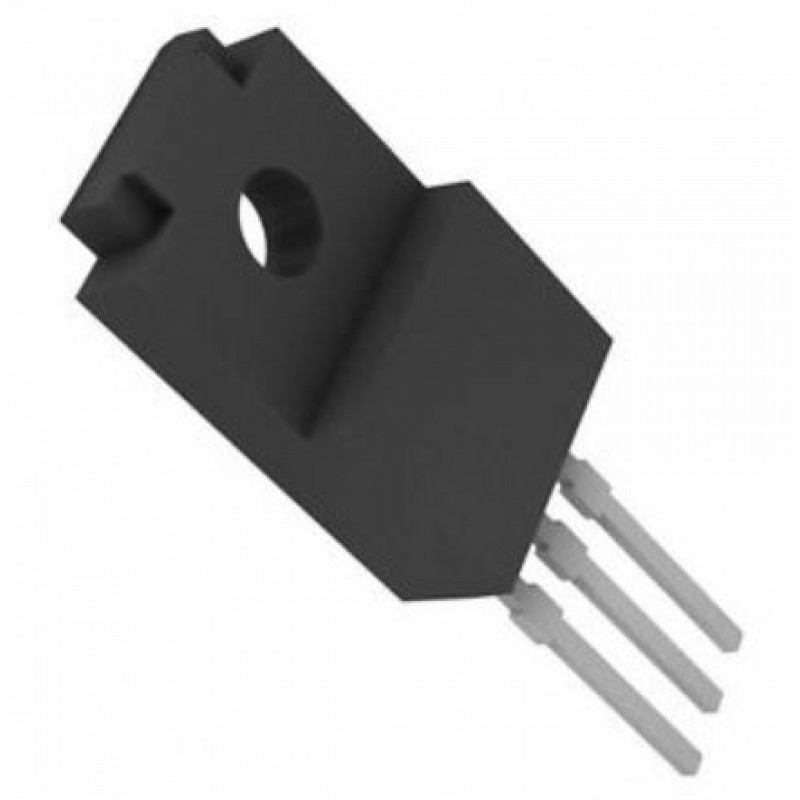

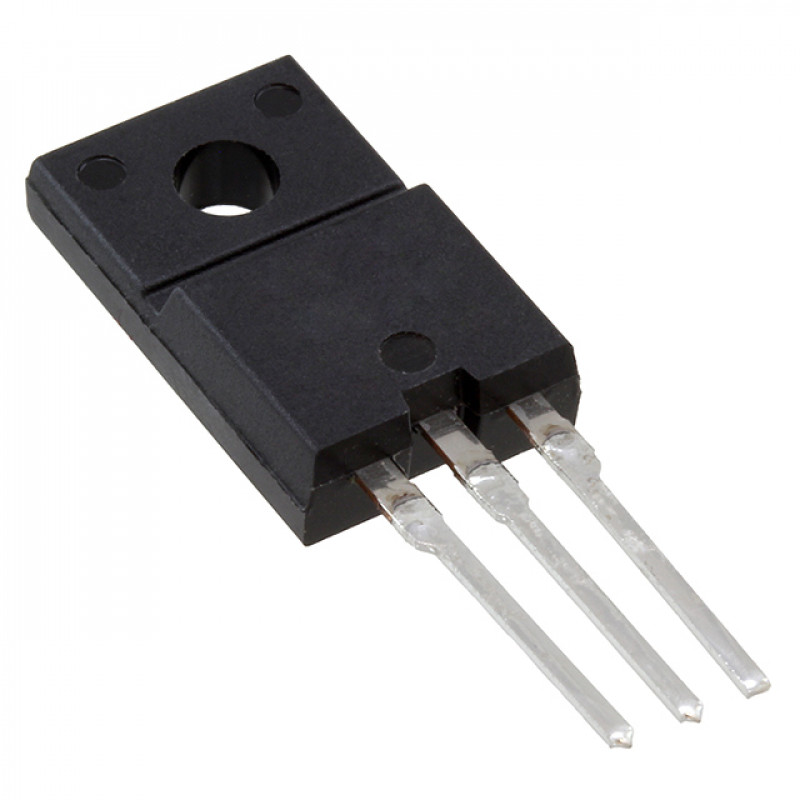

* Product Images are shown for illustrative purposes only and may differ from actual product.
2SD1594 NPN Power Transistor 100V 7A TO-220F Package
- Product Code: EC-1762
- Availability: 300
-
Rs.135.00
- (Excluding 18% GST)
