BD140 is a three layer NPN or PNP device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector emitter voltage VCE.


Features:-

• Low saturation voltage

• Simple drive requirements

• High safe operating area

• For low distortion complementary designs

• Easy to carry and handle


Detailed Specifications:-

Transistor Polarity PNP
Collector−Emitter Voltage (VCEO) 80V
Collector−Base Voltage (VCBO) 80V
Continuous Collector Current (Ic) 1.5A
Continuous Base Current (Ib) 0.5A
DC Current Gain (hFE) 40-250
Operating Temperature Range -65 - 150°C
Power Dissipation (Pd) 12.5W
Thermal Resistance (ΘJA) 100°C/W
Thermal Resistance (ΘJC) 10°C/W


Related Documents:-

 BD140 Transistor Datasheet


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 6.9 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

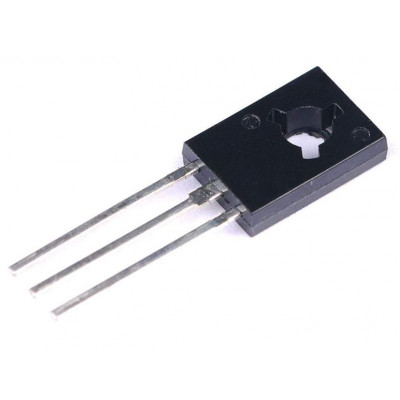

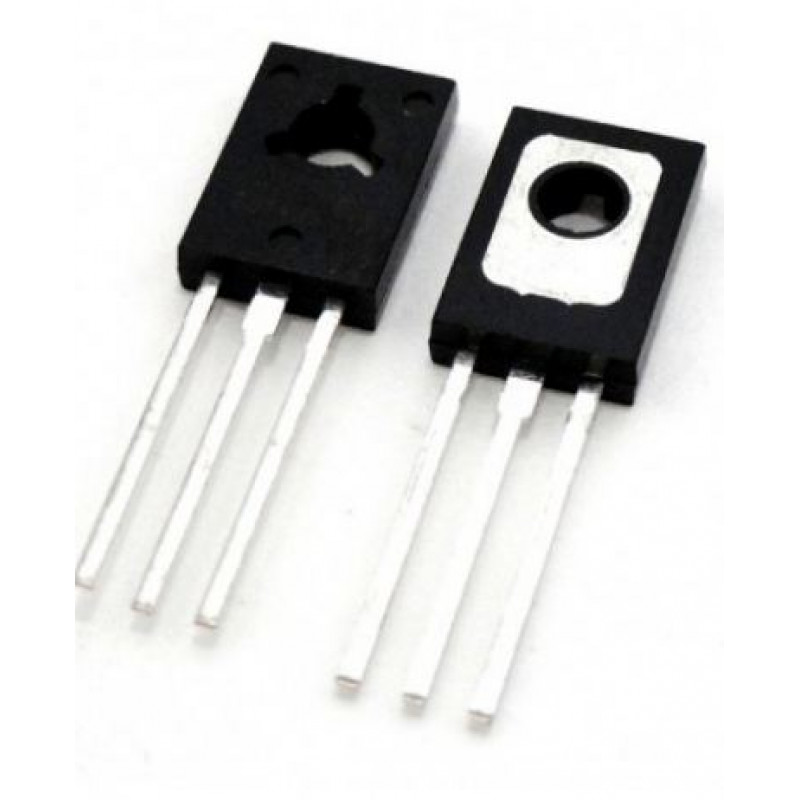

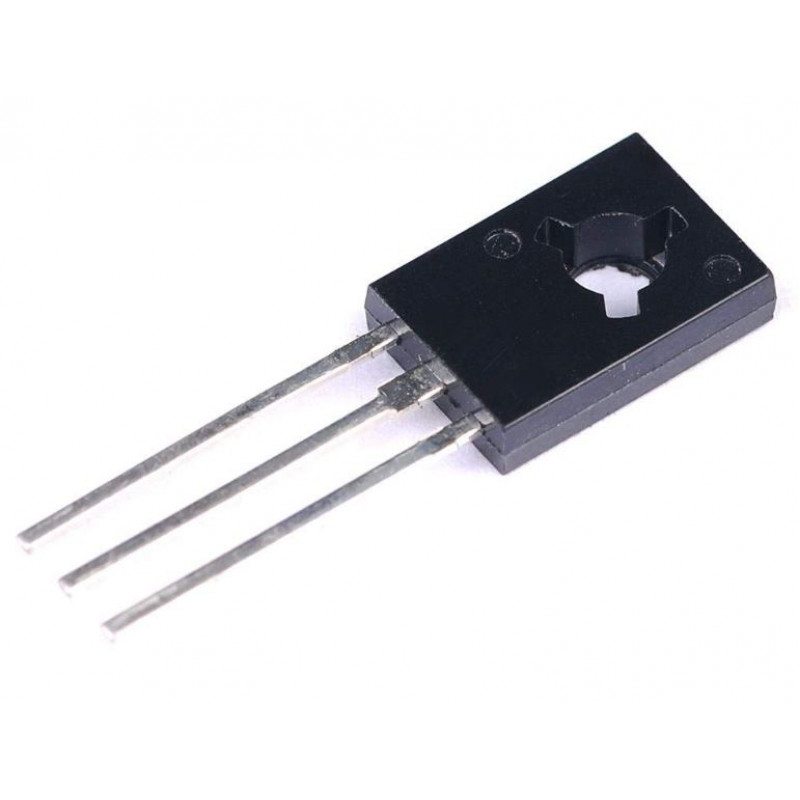

BD140 PNP Bipolar Medium Power Transistor 80V 1.5A TO-126 Package

  • Product Code: EC-1624
  • Availability: 10440
  • Rs.5.85
  • (Excluding 18% GST)
