BD238 is a three layer NPN or PNP device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector emitter voltage VCE.
Features:-
• Low saturation voltage
• Simple drive requirements
• High safe operating area
• For low distortion complementary designs
• Easy to carry and handle
Detailed Specifications:-
| Transistor Polarity | PNP |
| Collector−Emitter Voltage (VCEO) | 80V |
| Collector−Base Voltage (VCBO) | 100V |
| Continuous Collector Current (Ic) | 2A |
| DC Current Gain (hFE) | 40 |
| Operating Temperature Range | -65 - 150°C |
| Power Dissipation (Pd) | 25W |
| Current Gain Bandwidth (fT) | 3MHz |
| Thermal Resistance (ΘJC) | 5°C/W
|
Related Documents:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
* Product Images are shown for illustrative purposes only and may differ from actual product.

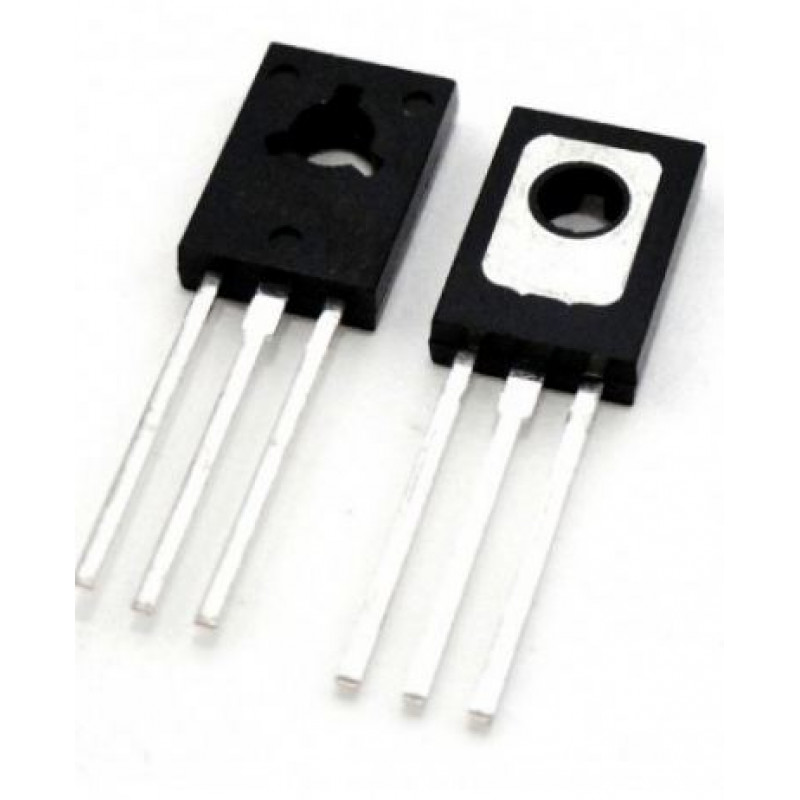

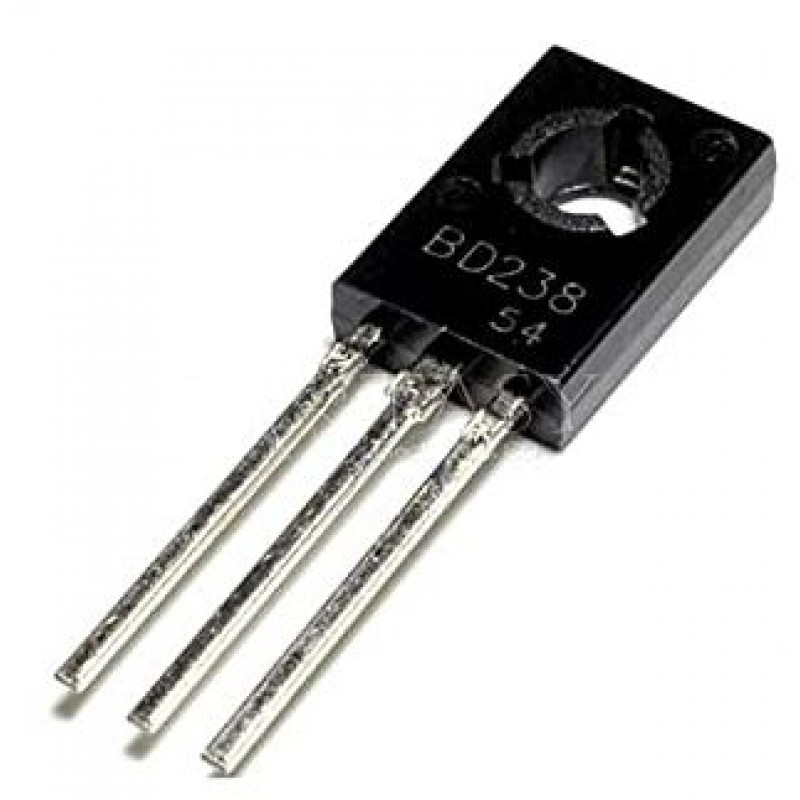

BD238 PNP Bipolar Medium Power Transistor 80V 2A TO-126 Package
- Product Code: EC-2315
- Availability: 434
-
Rs.21.24
