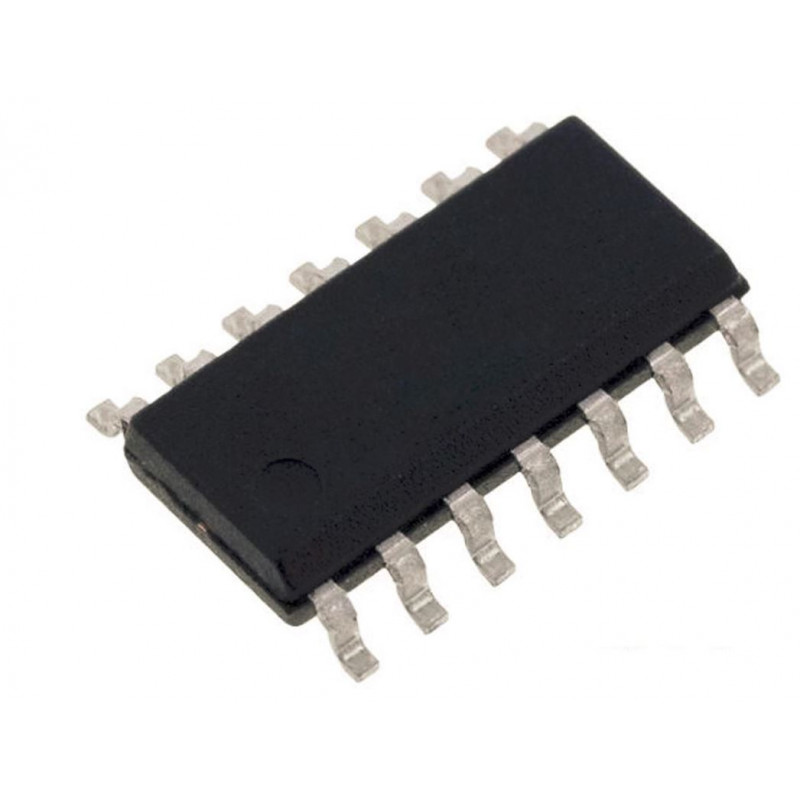

  • 74LS05 IC - (SMD Package) Hex Inverters with Open-Collector IC (7405 IC)

This device contains six independent gates each of which performs the logic INVERT function. The open-collector outputs require external pull-up resistors for proper logical operation.


Features :-

  • Six Independent INVERT Gates.
  • Open Collector Outputs Require Pull-Up Resistors.
  • Operating Temperature to 70°C.
  • Standard TTL Switching Voltages.


Specifications :-

Symbol

Parameter

Min

Max

Unit

VCC

Supply Voltage

4.75

 5.25

V

VIH

HIGH Level Input Voltage

 -

V

VIL

LOW Level Input Voltage

 -

0.8

V

VOH

HIGH Level Output Voltage

 -

5.5

V

IOL

LOW Level Output Current

 -

mA

TA

Free Air Operating Temperature

70

°C


Package Includes :-

1 X 74LS05 IC - (SMD Package) Hex Inverters with Open-Collector IC (7405 IC)

Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

74LS05 IC - (SMD Package) Hex Inverters with Open-Collector IC (7405 IC)

  • Product Code: EC-11193
  • Availability: 2673
  • Rs.19.00
  • (Excluding 18% GST)
