6125 series Fast-Acting square Surface Mount fuses are ceramic tube/end cap constructions, RoHS compliant, Halogen Free and lead(Pb) exempts of the requirements of RoHS Directive(2002/95/EC), with U.S.(UL/CSA) safety agency approvals. Provide board level primary and secondary circuit protection in a wide variety of applications. With excellent inrush current with standing capability, excellent reliability for thermal and mechanic shock, also have a high reliability and stable solder ability.
Features:-
- Fast-Acting ( Fast-Acting )
- Small size(6.1mm*2.5mm)
- Wide operating temperature range
- Low temperature de-rating
- RoHS compliant
- Tape and Reel for automatic placement
- Conflict free metals
Applications:-
- LED lighting
- Notebook PC
- Battery devices
- LCD/PDP devices
- LCD backlight inverter
- Portable Devices
- Power supply
- Networking devices
- PC server
- Cooling fan system
- Storage system
- Telecom system
Specification:-
- Brand : WEITE
- Fast Acting Fuse
- Hold Current: 3.15 Amp
- Maximum Voltage: 250V
- Mounting Type: SMD 1808
- Fuse Type : SMD
Package Includes:-
1 x SFE1315 250V 3.15A Weite (1808 SMD) Fast Acting Fuse
Brand/Manufacturer | |
Country Of Origin | |
Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
MRP | Rs. 22.42 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

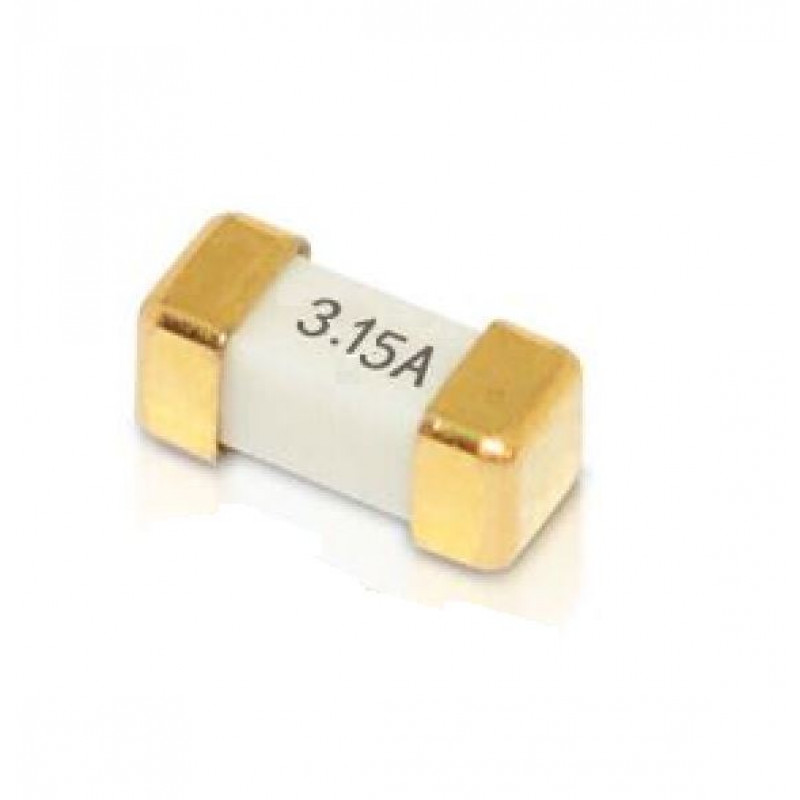

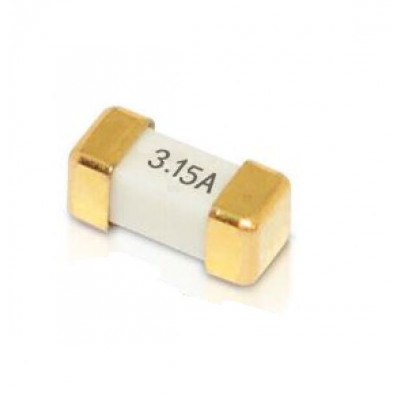

SFE1315 250V 3.15A Weite (1808 SMD) Fast Acting Fuse
- Product Code: EC-17044
- Availability: 522
-
Rs.19.00
- (Excluding 18% GST)
