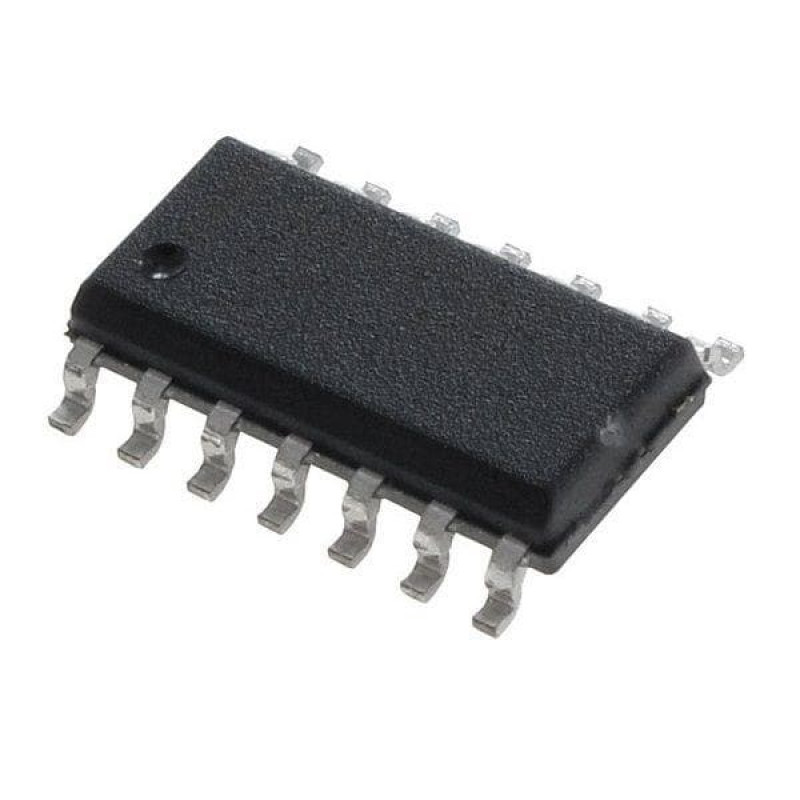

  • 74HC20 IC - (SMD Package) - Dual 4-input NAND Gate IC (7420 IC)

The 74HC20; 74HCT20 is a dual 4-input NAND gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.


Features :-

  • Complies with JEDEC standard JESD7A
  • Low-power dissipation
  • Input levels:
                       For 74HC20: CMOS level
                       For 74HCT20: TTL level
  • ESD protection:
                       HBM JESD22-A114F exceeds 2000 V
                       MM JESD22-A115-A exceeds 200 V
  • Multiple package options
Specified from °C40 °C to +80 °C and from °C40 °C to +125 °C.


Specifications :-

  • Supply voltage min : -0.5V
  • Supply voltage max : +7V
  • Input clamping current max : +20mA
  • Output clamping current max : +20mA
  • Output current max : +25mA
  • Supply current max : 50mA
  • Ground current min : -50mA
  • Storage temperature min : -65°C
  • Storage temperature max : +150°C
  • Total power dissipation max : mW


Package Includes :-

1 X 74HC20 Dual 4-input NAND Gate IC (7420 IC) DIP-14 Package
