The 74HC253 are high-speed Si-gate CMOS device sand are pin compatible with low power Schottky TTL(LSTTL). They are specified in compliance with JEDEC standard no. 7A. The 74HC253 have two identical 4-input multiplexer switch 3-state outputs which select two bits from four sources selected by common data select inputs (S0,S1).When the individual output enable (1OE, 2OE) inputs of the 4-input multiplexers are HIGH, the outputs are forced to the high impedance OFF-state. The “253” is the logic implementation of a 2-pole, 4-position switch, where the position of the switch is determined by the logic levels applied to S0and S1.
FEATURES:-
- Non-inverting data path
- 3-state outputs for bus interface
- and multiplex expansion
- Common select inputs
- Separate output enable inputs
- Output capability: bus driver
- ICC category: MSI
| Parameter | Min | Max | Unit |
| propagation delay | 17 | 17 | ns |
| input capacitance | 3.5 | 3.5 | pf |
| ambient temperature | -40 | +125 | °C |
| 3-state output enable time nOE to nY | 30 | 100 | ns |
| power dissipation capacitance per multiplexer | 55 | 55 | ns |
| output transition time | 14 | 60 | ns |
| 3-state output disable time nOE to nY | 41 | 150 | ns |
Package Includes:-

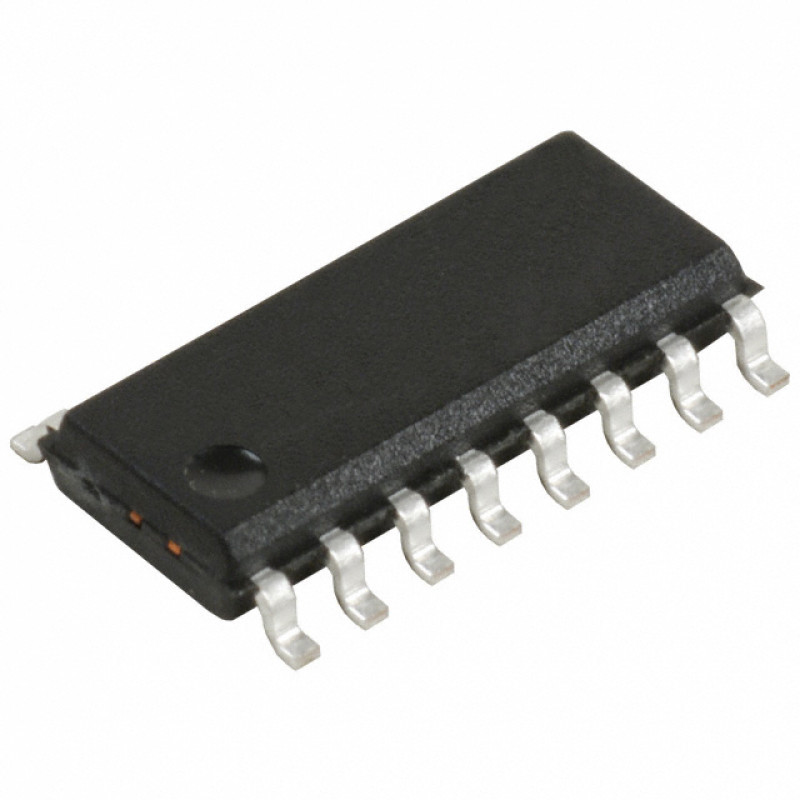

1 x 74HC253 IC - (SMD Package) Dual 4-Bit Multiplexer IC (74253 IC)
* Product Images are shown for illustrative purposes only and may differ from actual product.
74HC253 IC - (SMD Package) Dual 4-Bit Multiplexer IC (74253 IC)
- Product Code: EC-11153
- Availability: 2136
-
Rs.29.00
- (Excluding 18% GST)
