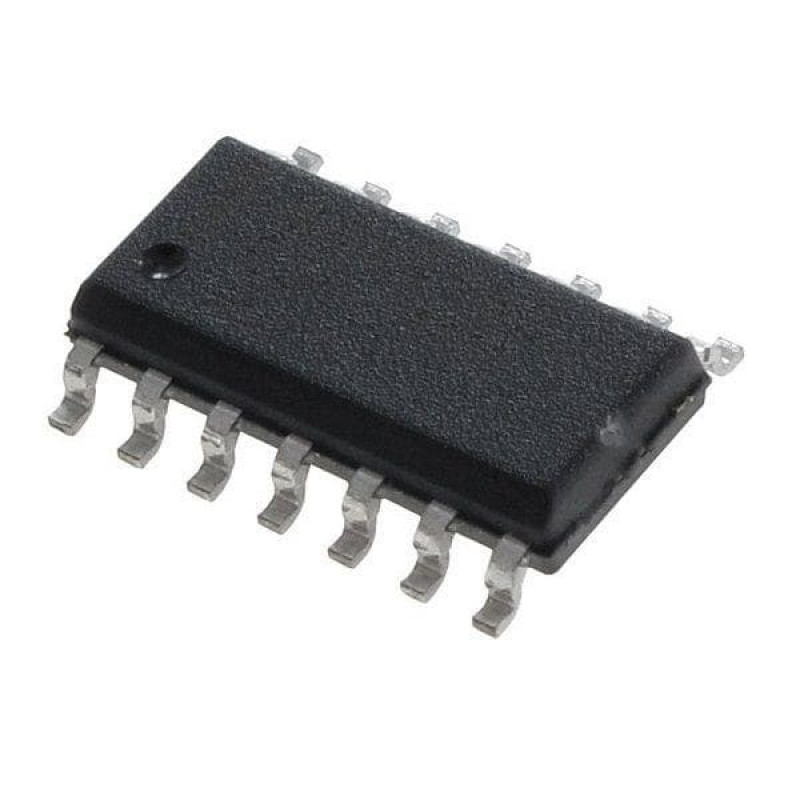

  • 74HC4016 IC - (SMD Package) - Quad Analog Switch Multiplexer Demultiplexer IC (744016 IC)

The 74HC4016 is a quad single pole, single throw analog switch. Each switch features two input/output terminals (nY and nZ) and an active HIGH enable input (nE). When nE is LOW, the analog switch is turned off. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.


Features :-

  • Input levels nE inputs:
  • For 74HC4016: CMOS level
  • Typical ‘break before make’ built-in
  • Low ON resistance:

                   160  (typical) at VCC = 4.5 V

                   120  (typical) at VCC = 6.0 V

                    85  (typical) at VCC = 9.0 V

  • Specified in compliance with JEDEC standard no. 7A
  • ESD protection:

                      HBM JESD22-A114F exceeds 2000 V

                      MM JESD22-A115-A exceeds 200 V

  • Specified from -40 °C to +85 °C and -40 °C to +125 °C


Specifications :-

Symbol

Parameter

Min

Max

Unit

VCC

Supply Voltage

 -0.5

 +11

V

IIK

input clamping current

 -

 +20

mA

Iok

output clamping current

  -

 +20

mA

IO

output current

 -

  +25

mA

ICC

supply current

 -

+50

mA

IGND

ground current

 -50

 -

mA

Tstg

storage temperature

 -65

 +150

°C

Ptot

total power dissipation

        -

     500

mW


Package Includes :-
