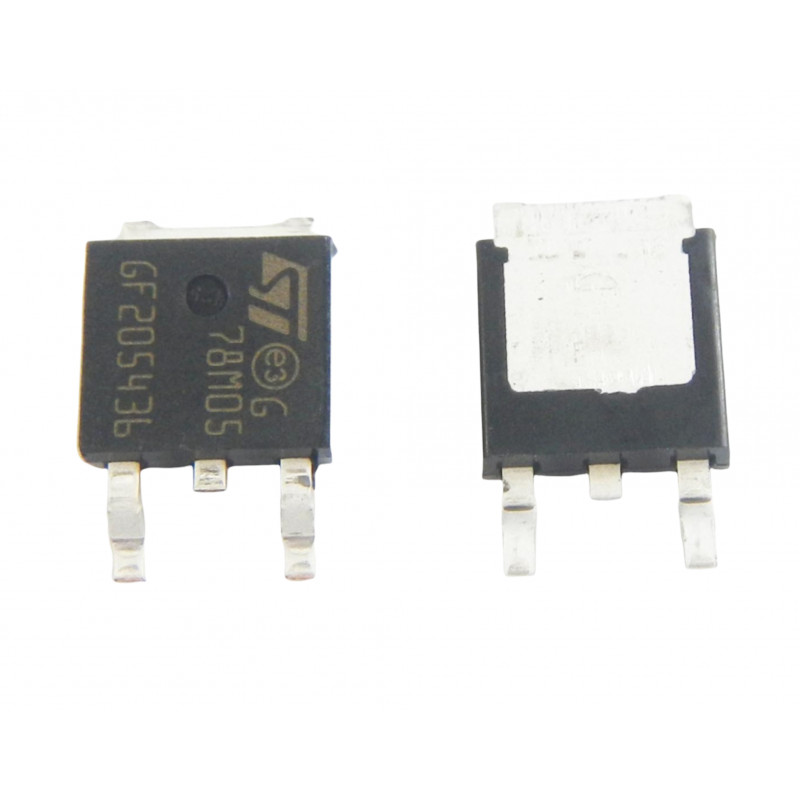

  • 78M05 - 7805 - (SMD TO-252/DPAK Package) - 5V Positive Voltage Regulator IC

The 78M05 series of three-terminal positive regulators are available in the TO-220/D-PAK package with several fixed output voltages making it useful in a wide range of applications.

Features:-

• Output Current up to 0.5A

• Output Voltages of 5, 6, 8, 12, 15, 18, 24V

• Thermal Overload Protection

• Short Circuit Protection

• Output Transistor Safe Operating Area (SOA)Protection

Specification:-

Symbol Parameter Value Unit
VI Input Voltage (for VO = 5V to 18V)
 (for VO = 24V)
35 V
40
RθJC Thermal Resistance Junction-Case (Note1)
 TO-220 (Tc = +25°C)
2.5 °C/W
RθJA Thermal Resistance Junction-Air: TO-220 (Ta = +25°C) 66
D-PAK (Ta = +25°C)
92 °C/W
TOPR Operating Junction Temperature Range  0 ~ +150 °C
TSTG Storage Temperature Range -65 ~ +150 °C


Related Document:-

 78M05 SMD Data Sheet



Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 22.42 (Inclusive of all Taxes)
