  • 78M09 - 7809 - L78M09 IC - (SMD TO-252/DPAK Package) - 9V Positive Voltage Regulator IC

The L78M09 of three-terminal positive regulators is available in TO-220, TO-220FP, DPAK and IPAK packages and with several fixed output voltages, making it useful in a wide range of applications. These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type employs internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 0.5A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltage and currents.

Features:-

• Output current to 0.5A

• Output voltages of 5; 6; 8; 9; 10; 12; 15; 18; 20; 24V

• Thermal overload protection

• Short circuit protection

Output transition SOA protection

Specification:-

Symbol Parameter Value Unit
VI DC Input voltage: for VO= 5 to 18V
35 V
                      for VO= 20, 24V 40
IO Output current Internally Limited mA
PD Power dissipation Internally Limited mW
TSTG Storage temperature range -65 to 150 °C
TOP Operating junction temperature range 0 to 150 °C


Related Document:-

 78M09-7809-L78M09 SMD Data Sheet

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 22.42 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

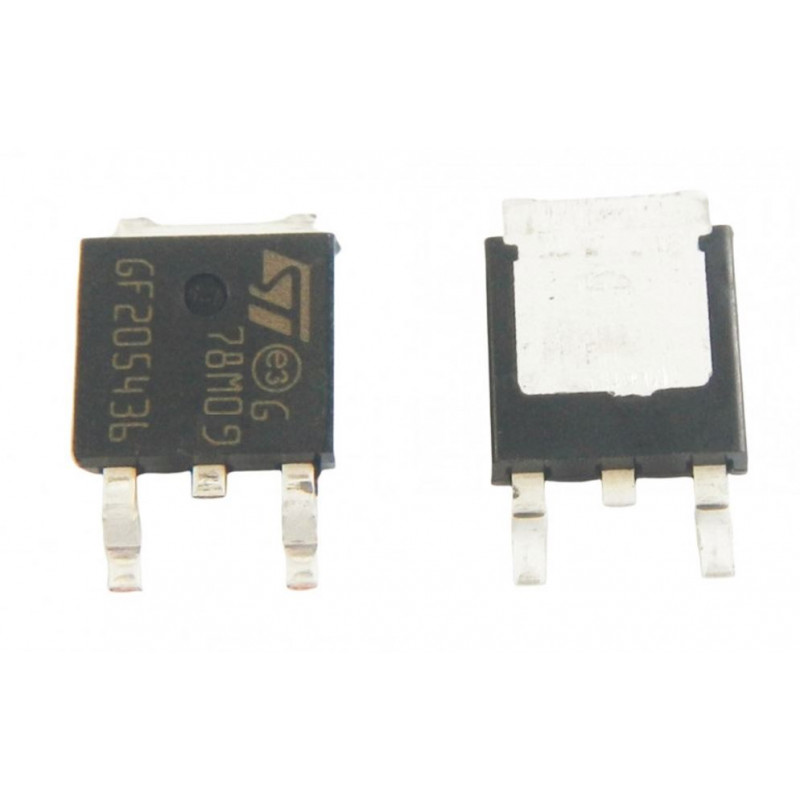

78M09 - 7809 - L78M09 IC - (SMD TO-252/DPAK Package) - 9V Positive Voltage Regulator IC

  • Product Code: EC-1907
  • Availability: 3908
  • Rs.19.00
  • (Excluding 18% GST)
