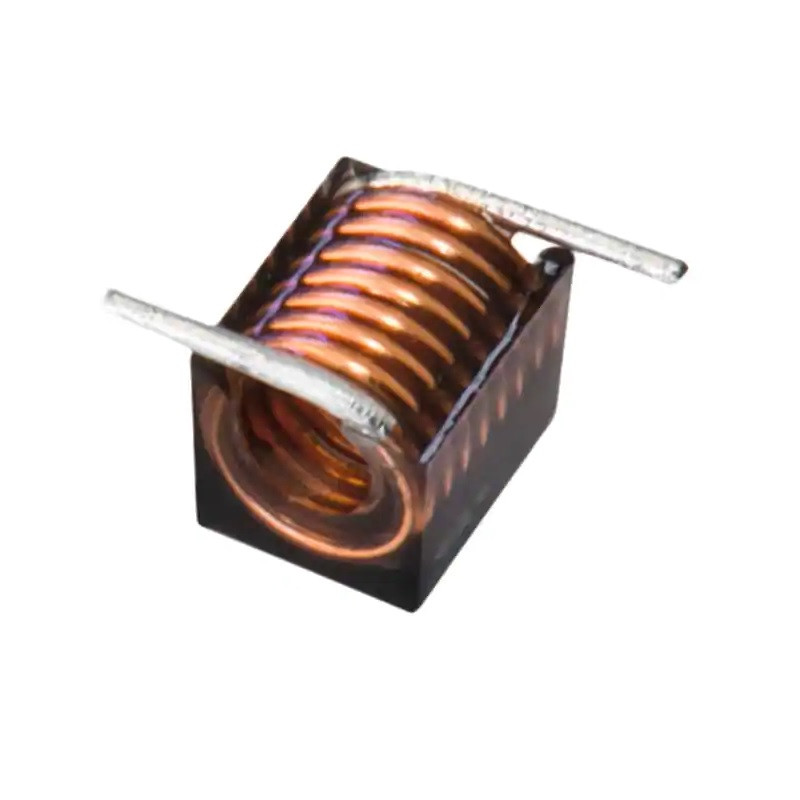

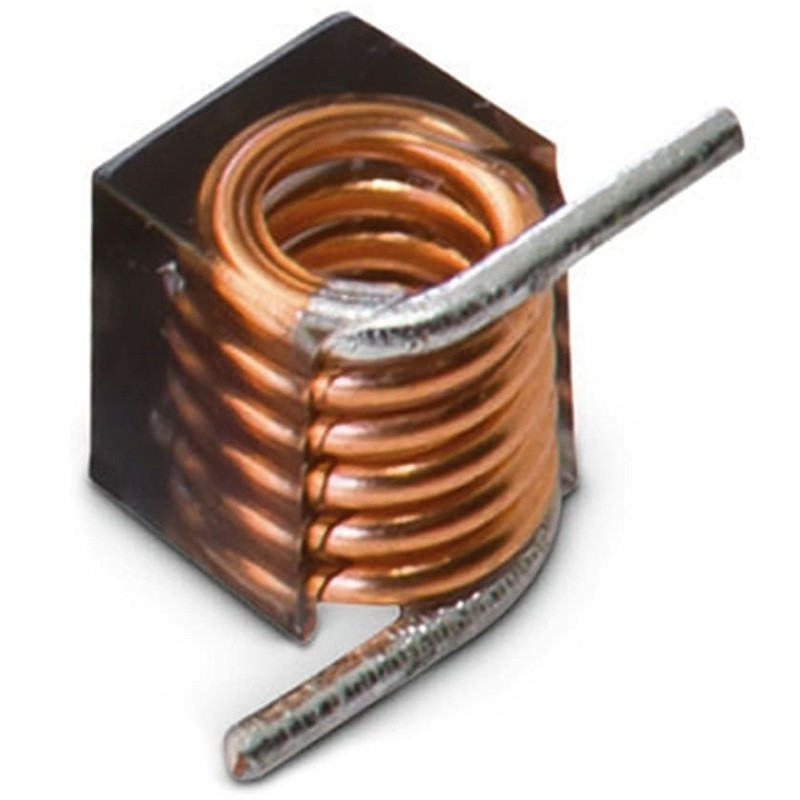

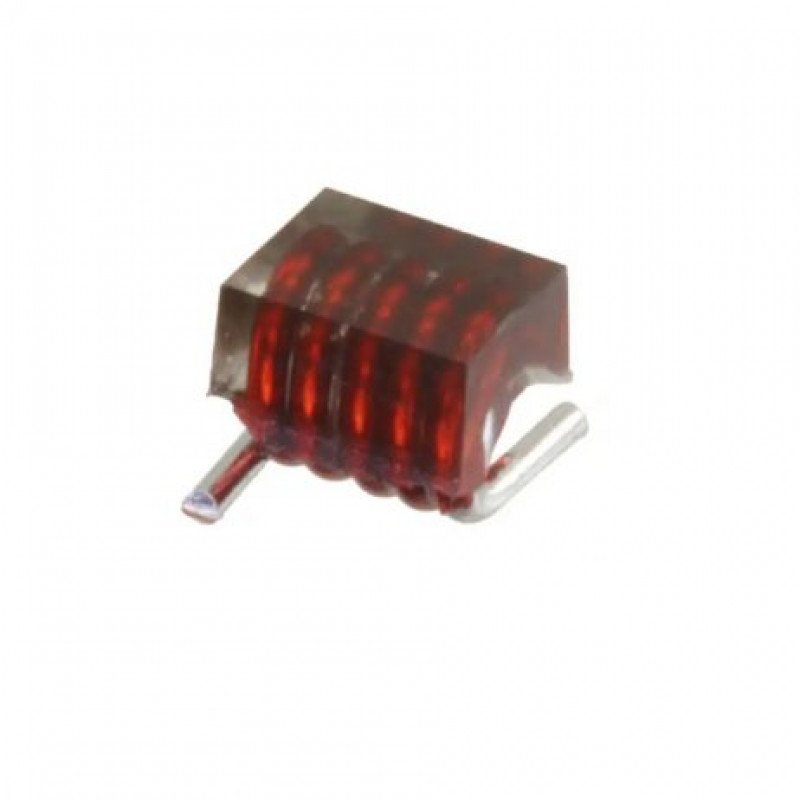

This is a 100nH 1.7A Air-Core Inductor. Air-Core RF Inductors, part of the wound air core inductor family, are ideal for RF circuits, broadband I/O filtering, frequency selection, or impedance matching. The air core inductor provides better performance over solid-core inductors with higher Q and better current handling capabilities.
Features:
- Air-Core Construction
- High Q
- High Current
- Excellent SRF
Package Includes:
1 x 100nH 1.7A Air-Core Inductor (Pack of 2).
Specifications:
| Inductance | 100nH |
| Tolerance(%) | 5 |
| DC Resistance (DCR)(mΩ) at 20°C | 12.3 |
| Current Rating (A) | 1.7 |
| Mounting Type | SMD/SMT |
| Length (mm) | 4.83 |
| Width (mm) | 3.81 |
| Height (mm) | 4.2 |
| Weight (gm) | 0.5 each |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 115.64 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
100nH 1.7A Air-Core Inductor
- Product Code: EC-6874
- Availability: 18
-
Rs.98.00
- (Excluding 18% GST)
