This is a 33uH 20% 0.4475 Ohm 430mA Coupled Inductor. It is a Coupled Inductor with a low DCR and high rated current surface mount SMD power inductor. These are lead-free products, RoHS compliant. These inductors are widely used in buck converter, laptop, displays, network communication equipment, and etc.
Features:
- Magnetic-resin shielded construction reduces buzz noise to ultra-low levels
- Metallization on ferrite core results in excellent shock resistance and damage-free durability
- Closed magnetic circuit design reduces leakage flux and Electro Magnetic Interference (EMI)
- 30% higher current rating than conventional inductors of equal size
- Take up less PCB real estate and save more power
Package Includes:
1 x 33uH 430mA Coupled Inductor.
Specifications:
| Inductance | 33uH |
| Tolerance(%) | 20 |
| Mounting Type | SMD/SMT |
| DC Resistance (DCR)(mΩ) at 20°C | 0.4475 |
| Current Rating (A) | 430mA |
| Length (mm) | 5 |
| Width (mm) | 5 |
| Height (mm) | 3 |
| Weight (gm) | 0.2 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 114.46 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

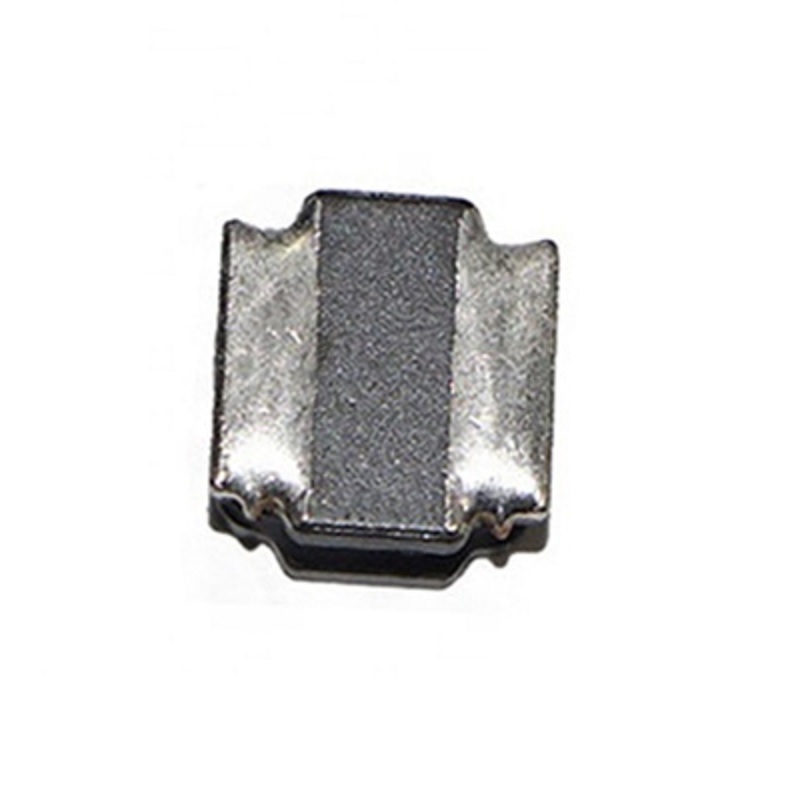

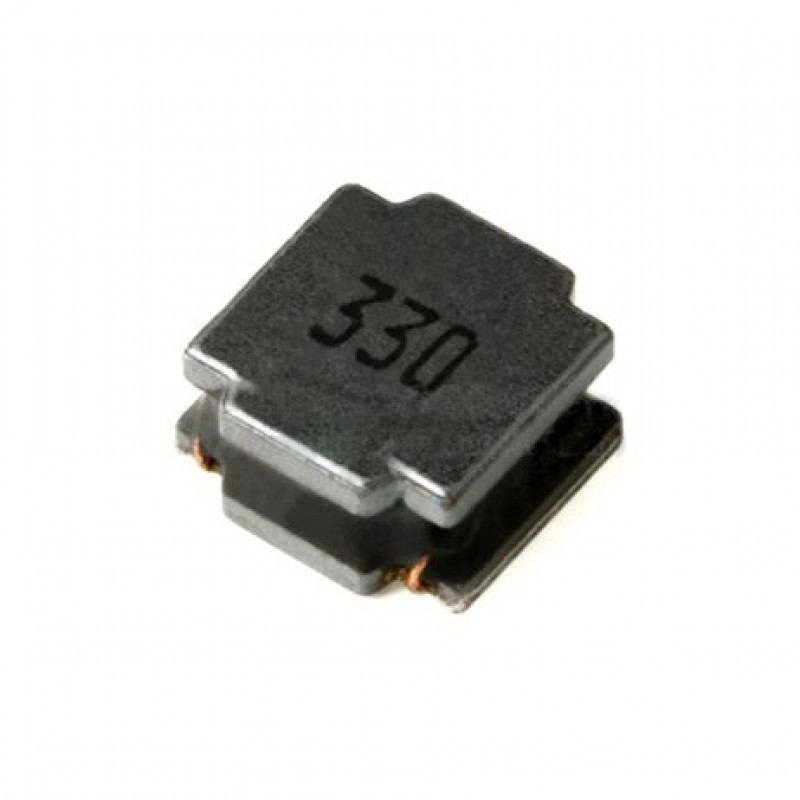

33uH 430mA SMD Coupled Inductor
- Product Code: EC-6878
- Availability: 97
-
Rs.97.00
- (Excluding 18% GST)
