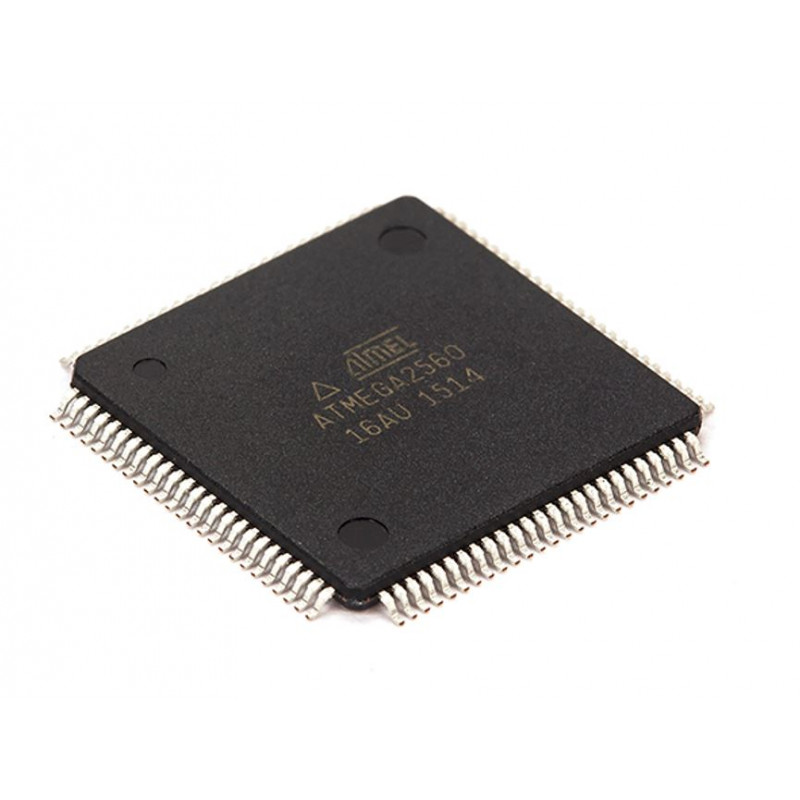

  • ATMEGA2560 - 16AU Microcontroller  - (SMD Package) - TQFP - 100 Pin Microcontroller

The ATMEGA2560 is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATMEGA2560 achieves through puts approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.

The high-performance, low-power 8-bit AVR RISC-based microcontroller combines 256KB ISP flash memory, 8KB SRAM, 4KB EEPROM, 86 general purpose I/O lines, 32 general purpose working registers, real time counter, six flexible timer/counters with compare modes, PWM, 4 USARTs, byte oriented 2-wire serial interface, 16-channel 10-bit A/D converter, and a JTAG interface for on-chip debugging. The device achieves a throughput of 16 MIPS at 16 MHz and operates between 4.5-5.5 volts.

By executing powerful instructions in a single clock cycle, the device achieves a throughput approaching 1 MIPS per MHz, balancing power consumption and processing speed

Features:-

• High-performance, Low-power Atmel AVR 8-bit Microcontroller

• Advanced RISC Architecture

   - 133 Powerful Instructions

   -  32 × 8 General Purpose Working Registers + Peripheral Control Registers

   -  Fully Static Operation

   -  Up to 16MIPS Throughput at 16MHz

   - On-chip 2-cycle Multiplier

• High Endurance Non-volatile Memory segments

   - 64K/128K/256KBytes of In-System Self-Programmable Flash

   - 4Kbytes EEPROM

   - 8Kbytes Internal SRAM

   - Write/Erase Cycles:10,000 Flash/100,000 EEPROM

   - Data retention: 20 years at 85°C/100 years at 25°C(1)

   - Optional Boot Code Section with Independent Lock Bits

          • In-System Programming by On-chip Boot Program

          • True Read-While-Write Operation

   -  Programming Lock for Software Security

JTAG (IEEE std. 1149.1 Compliant) Interface

    - Boundary-scan Capabilities According to the JTAG Standard

    - Extensive On-chip Debug Support Atmel-8151

    - Programming of Flash, EEPROM, Fuses and Lock Bits through the JTAG Interface

• Peripheral Features

   – Two 8-bit Timer/Counters with Separate Prescalers and Compare Modes

   – Four 16-bit Timer/Counter with Separate Prescaler, Compare- and Capture Mode

   – Real Time Counter with Separate Oscillator

   – Four 8-bit PWM Channels

   – Six/Twelve PWM Channels with Programmable Resolution from 2 to 16 Bits

   –  Output Compare Modulator

   – 8/16-channel, 10-bit ADC (

   – Two/Four Programmable Serial USART

   – Master/Slave SPI Serial Interface

   – Programmable Watchdog Timer with On-chip Oscillator

   – On-chip Analog Comparator

   – Byte Oriented 2-wire Serial Interface

   – Interrupt and Wake-up on Pin Change

• Special Microcontroller Features

  – Power-on Reset and Programmable Brown-out Detection

  – Internal Calibrated RC Oscillator

  – External and Internal Interrupt Sources

  – Six Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, Standby, and  Extended Standby '

• I/O and Packages

    ̶  54/86 Programmable I/O Lines

    ̶  100-lead TQFP, 100-ball CBGA

    ̶  RoHS/Fully Green

• Temperature Range

   – -40C to 85C Industrial

• Speed Grades

   – 0 - 16MHz

• Ultra-Low Power Consumption

     ̶  Active Mode: 1MHz, 1.8V: 500µA

    ̶  Power-down Mode: 0.1µA at 1.8V

Specification:-

Parameters Values
Program Memory Type Flash
Program Memory Size (KB) 256
CPU Speed (MIPS/DMIPS) 16
SRAM (B) 8,192
Data EEPROM/HEF (bytes) 4096
Digital Communication Peripherals 4-UART, 5-SPI, 1-I2C
Capture/Compare/PWM Peripherals 4 Input Capture, 4 CCP, 16PWM
Timers 2 x 8-bit, 4 x 16-bit
Number of Comparators 1
Temperature Range (°C) -40 to 85
Operating Voltage Range (V) 1.8 to 5.5
Pin Count 100


Related Document:-

 ATMEGA2560 SMD Data Sheet

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 1296.82 (Inclusive of all Taxes)
