The SI2308 SMD N-Channel 60-V (D-S) MOSFET. The following are the features:-
• Halogen-free According to IEC 61249-2-21 Available
• TrenchFET® Power MOSFET
• 100 % Rg Tested
• 100 % UIS Tested
Application:-
• Battery Switch
• DC/DC Converter
Specification:-
| Symbol | Parameter | Value | Unit |
| VDSS | Drain-Source Voltage | 60 | V |
| VGS | Gate-Source Voltage | ± 20 | V |
| ID | Drain Current Continuous | 2.3 | A |
| IDM | Drain Current Pulsed (tp≤10µS) | 8 | A |
| PD | Drain Power Dissipation | 1.66 | W |
| TJ | Operating Junction Temperature | -55 to +150 | ° C |
| TSTG | Storage Temperature Range |
Related Document:-
S12308 SMD Data Sheet
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 29.5 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

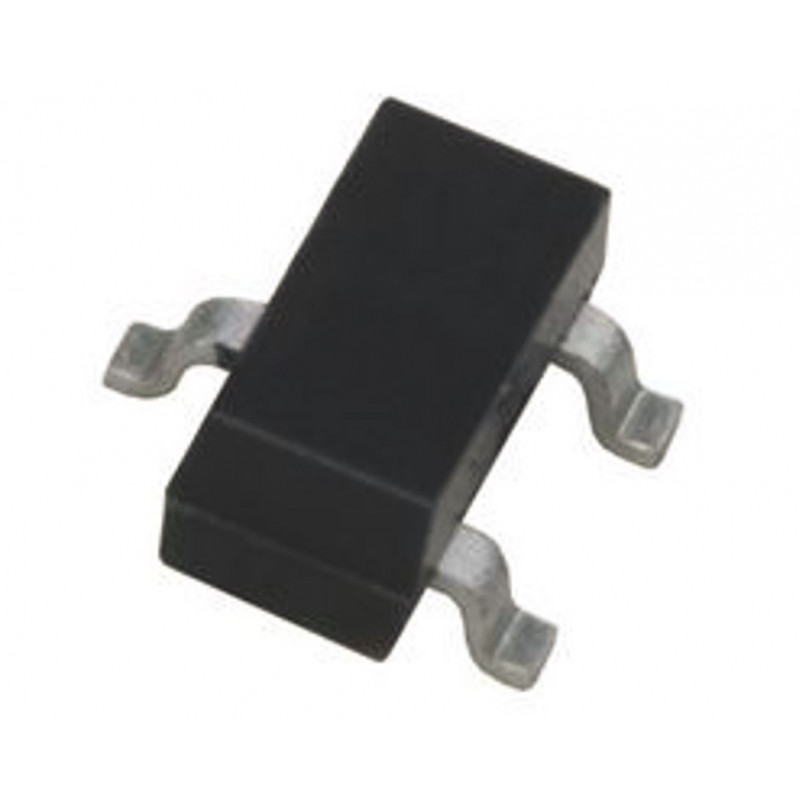

SI2308 MOSFET - (SMD SOT-23 Package) - N-Channel MOSFET
- Product Code: EC-3159
- Availability: 2408
-
Rs.25.00
- (Excluding 18% GST)
