The TL431 is three terminal adjustable shunt regulator offering excellent temperature stability and output current handling capability up to 100mA. The output voltage may be set to any chosen voltage between 2.5 and 36 volts by selection of two external divider resistors.
The devices can be used as a replacement for zener diodes in many applications requiring an improvement in zener performance.
Specifications:-
- Temperature range -40 to +125ºC
- Reference Voltage Tolerance at 25°C: 2.495V ± 1.0%
- Low Output Noise
- 0.2Ω Typical Output Impedance
- Sink Current Capability: 1mA to 100mA
- Adjustable Output Voltage: VREF to 36V
- Power Dissipation: 330mW
Applications:-
- Opto-Coupler Linearisers
- Shunt Regulators
- Improved Zener
- Variable Reference
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 7.67 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

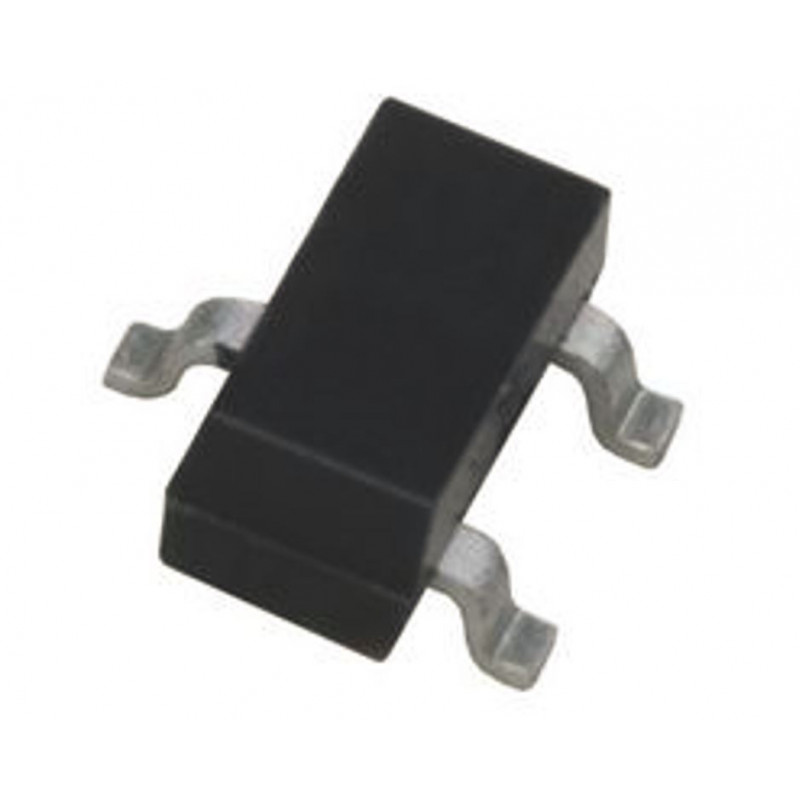

TL431 - (SMD SOT-23 Package) - Adjustable Precision Shunt Regulator
- Product Code: EC-2457
- Availability: 6268
-
Rs.6.50
- (Excluding 18% GST)
