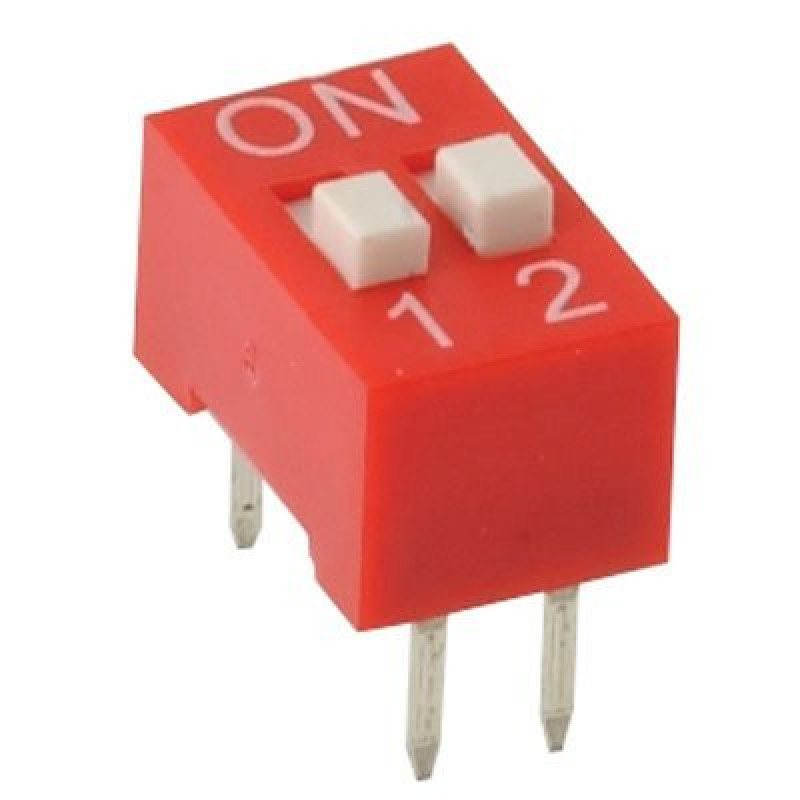

  • 2 Way Slide Switch 2.54mm Pitch - Pack of 5

It is a 2.54mm Pitch 2 Way DIP Slide Switch. The slide switch is widely used in the modulation of the CPU, wireless communication, broadcast, and TV, in the software programming for the automated equipment, and in the self-control of the NC equipment and other instruments and meters.


Package Includes:

5 x2.54mm Pitch 2 Way DIP Slide Switch.



Specifications:

Voltage(V)

30V DC

Operating Current (A)

0.15

No. of Pins

2

Pin Spacing (mm)

2.54

Mounting Type

Through Hole

Operating Temperature Range (°C)

-40 to 85

Mech. & Electrical Lifecycle

2000

Length (mm)

6.6

Width (mm)

9.8

Height (mm)

6.5

Weight (gm)

0.1 (approx) (each)


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 68.44 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

2 Way Slide Switch 2.54mm Pitch - Pack of 5

  • Product Code: EC-6241
  • Availability: 83
  • Rs.58.00
  • (Excluding 18% GST)
